Designed for Embedded Industrial Systems
The 4.3 inch TFT LCD module provides a balance between compact size, image quality and reliability.
The display supports multiple RGB timing modes including:
SYNC mode
SYNC-DE mode
DE mode
allowing flexible integration with different embedded processors and controller boards.
Compact Industrial Display Solution for Embedded Applications

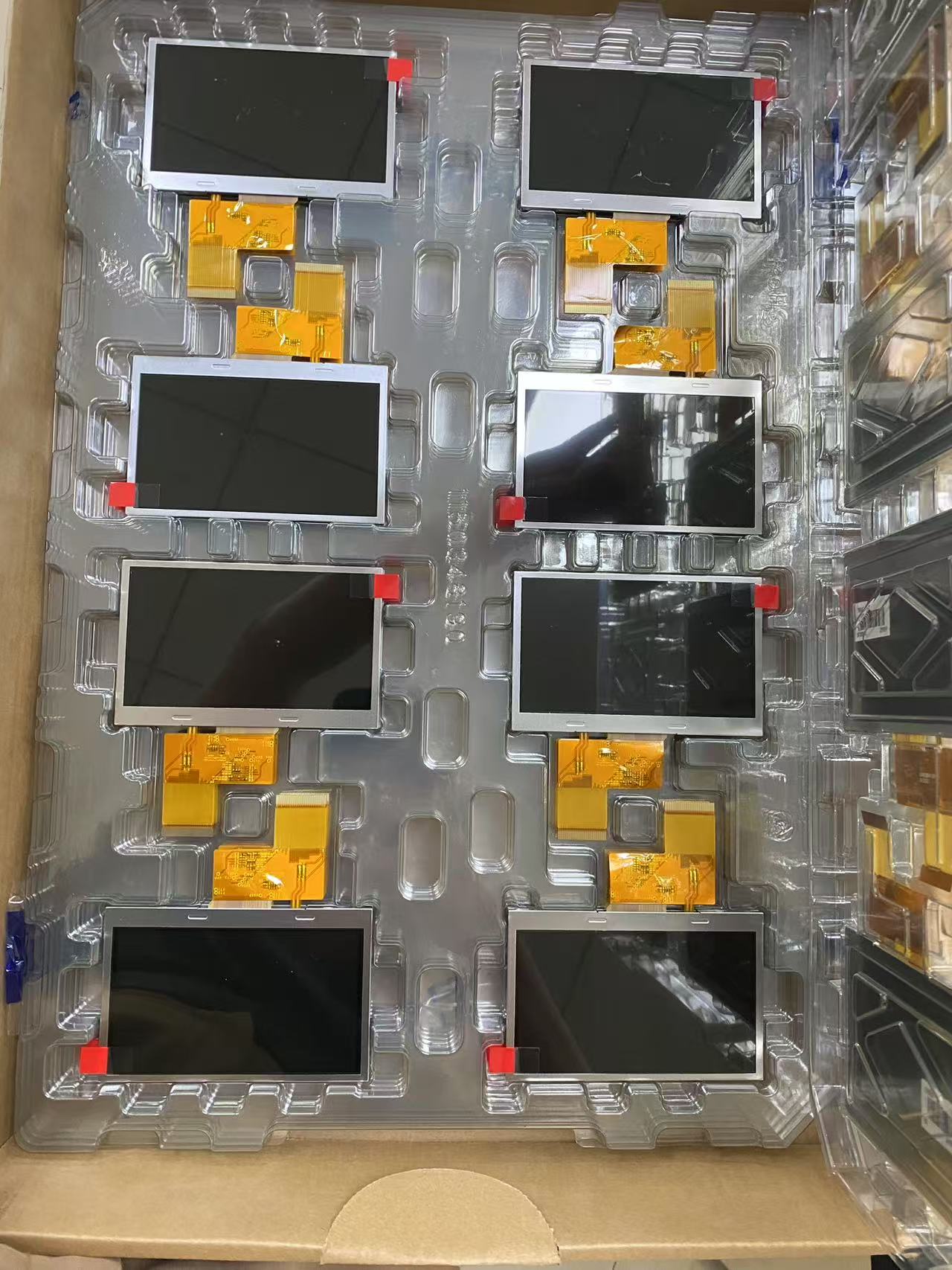

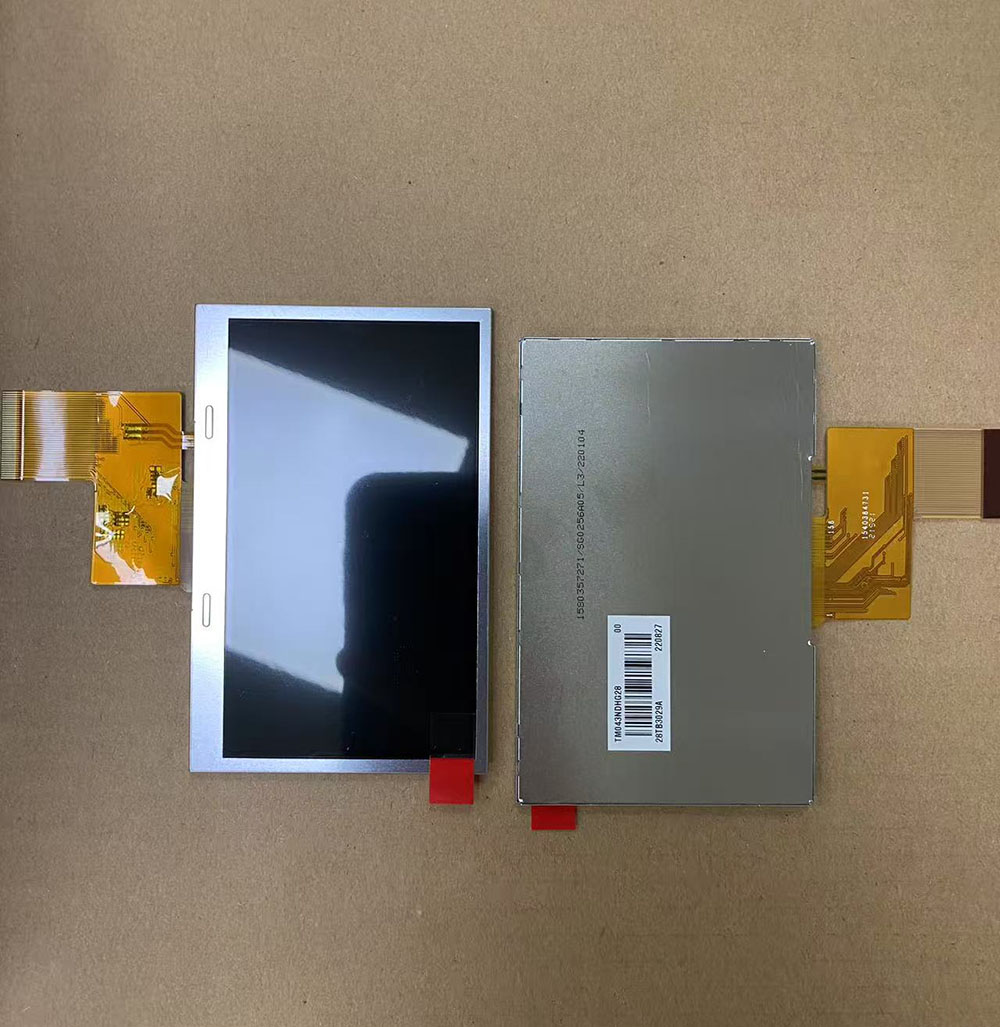

The 4.3 inch industrial TFT display module is designed for compact embedded systems requiring reliable image performance, stable operation and long product lifecycle support.
Featuring a 480(RGB)×272 resolution TFT LCD panel, 24-bit RGB interface, high brightness backlight and industrial temperature capability, this display module is suitable for HMI systems, control panels, medical devices, industrial instruments and smart equipment.
The module adopts a slim mechanical design with a thickness of only 3.5mm, making it ideal for space-limited applications.

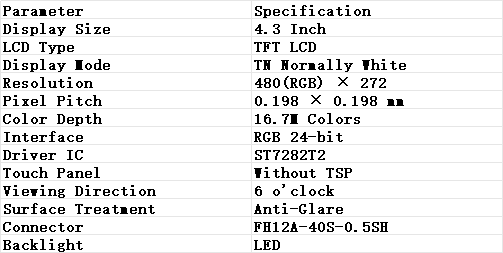

Product Highlights
Key Features
✔ 4.3 Inch Compact TFT Display
4.3 inch TFT LCD module
Resolution: 480 × RGB × 272 pixels
Vertical RGB stripe configuration
TN normally white display mode
✔ High Brightness Industrial Display
Typical brightness: 500 cd/m²
Contrast ratio: 800:1 typical
Clear image visibility for industrial environments
✔ Easy Embedded System Integration
RGB 24-bit interface
16.7M colors
ST7282T2 driver IC
FH12A-40S-0.5SH connector
✔ Industrial Temperature Reliability
Designed for demanding environments:
Operating temperature:
-30℃ to +85℃
Storage temperature:
-30℃ to +90℃
Industrial Applications
Industrial HMI
Machine control panels
Factory automation equipment
PLC interface displays
Industrial controllers
Medical Equipment
Medical monitoring devices
Diagnostic instruments
Portable healthcare equipment
Smart Devices
Smart terminals
IoT control panels
Access control systems
Transportation
Vehicle displays
Charging stations
Navigation terminals
Consumer & Commercial Equipment
POS terminals
Kitchen appliances
Smart home devices
Why Choose Our 4.3 Inch TFT Display?
Professional Industrial Display Supplier
OEM / ODM Customization
We provide:
✔ Custom TFT display solutions
✔ Touch panel integration
✔ Cover glass customization
✔ FPC and connector customization
✔ Brightness optimization
✔ Optical bonding solutions
OEM & ODM Capability
Customized Display Solutions
For different application requirements, we support:
Hardware Customization
Interface modification
Connector customization
Mechanical structure adjustment
Backlight customization
Touch Integration
Available options:
Resistive touch screen
PCAP capacitive touch
Customized touch sensor
Optical Enhancement
Optional:
Anti-reflective coating
Anti-glare treatment
Full lamination
Sunlight readable enhancement
Reliability Testing
The module supports industrial reliability testing including:
High temperature operation (+85℃)
Low temperature operation (-30℃)
High temperature storage (+90℃)
Thermal shock testing
Vibration testing
Shock testing
The display resolution is 480 × 272 pixels with RGB vertical stripe configuration.
The standard module is supplied without touch panel. Resistive or capacitive touch panels can be customized.
The module uses RGB 24-bit interface with ST7282T2 driver IC.
Yes. We support OEM/ODM customization including touch integration, FPC, connector, brightness and mechanical design.
It is suitable for industrial HMI, medical devices, embedded systems, smart terminals and control equipment.
