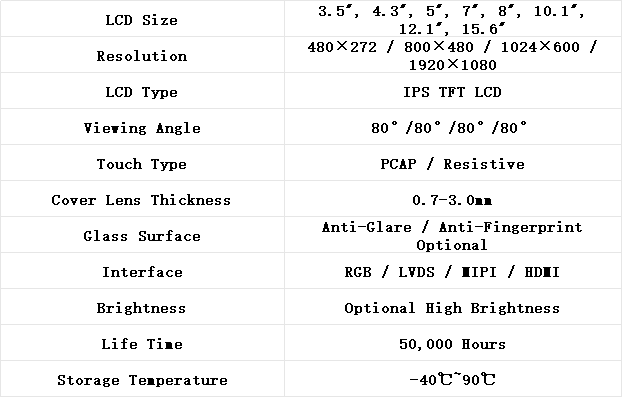

| Product Type | Rugged Full Lamination Display |
| Display Technology | TFT LCD |
| Touch Technology | PCAP / Resistive |
| Bonding Method | OCA / OCR Full Lamination |
| Cover Glass | Protective Glass |
| Size Range | 3.5 - 15.6 inch |
| Brightness | 300-2000 nits |
| Operating Temperature | -30℃ ~ 80℃ |
| Application | Industrial / Outdoor / Automotive |
| Customization | OEM / ODM Supported |

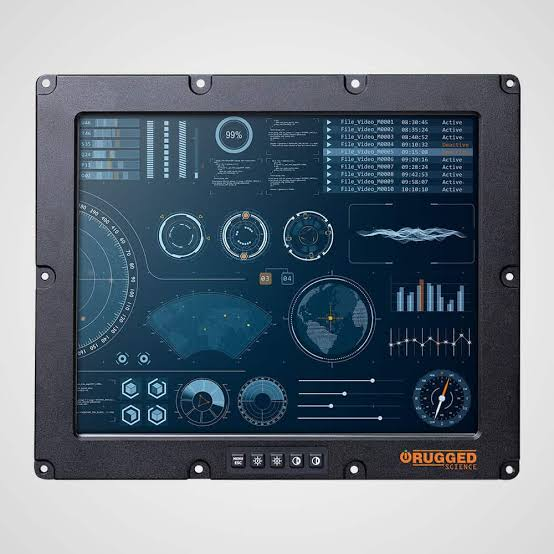

Rugged Full Lamination Display Module
Our rugged full lamination display integrates TFT LCD, touch panel and protective cover glass using advanced optical bonding technology.
By eliminating the air gap between display layers, the module delivers improved visibility, stronger mechanical reliability and enhanced resistance against vibration, shock and harsh environmental conditions.
The rugged display solution is ideal for industrial machines, outdoor terminals, automotive systems, medical devices and other demanding applications.
We provide OEM and ODM customization including display size, brightness, touch function, glass protection and mechanical design.
1. Full Lamination Structure
Cover Glass
Air Gap
Touch Panel
Air Gap
LCD
Cover Glass
Optical Adhesive
Touch Panel
Optical Adhesive
LCD
2. Anti-Shock & Vibration Resistant
✔ Strong mechanical bonding
✔ Better vibration resistance
✔ Longer service life
3. Sunlight Readable Performance
High brightness LCD
Anti-glare glass
Optical bonding
300 nits
800 nits
1000 nits+
1500 nits+
4. Industrial Grade Reliability
Wide temperature operation
Continuous 24/7 operation
Dust resistant design
Why Choose Full Lamination Technology?
Traditional air-gap displays may suffer from:
Strong reflection
Dust penetration
Moisture problems
Poor outdoor visibility
Full lamination technology eliminates the air layer between components.
Benefits:
Better Optical Performance
Higher contrast
Improved readability
Reduced reflection
Better Durability
Shock resistance
Vibration resistance
Stronger structure
Better User Experience
Faster touch response
Smooth surface
Premium appearance
Rugged Display Customization Options
Display
Size
Resolution
Brightness
Viewing angle
Touch
PCAP touch
Resistive touch
Multi-touch

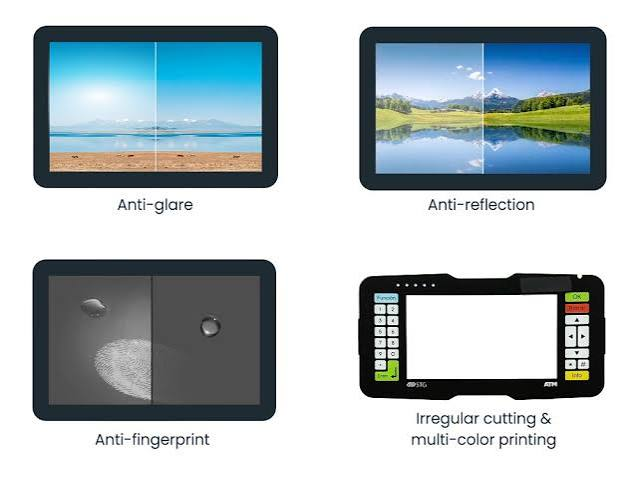

Protection
Tempered glass
Anti-glare coating
Anti-fingerprint coating
Mechanical
Custom bezel
Housing design
Connector position
Industrial Automation
CNC machine
Industrial HMI
Control panel
Outdoor Equipment
Charging station
Outdoor kiosk
Ticket machine
Automotive & Transportation
Vehicle dashboard
Fleet management terminal
Navigation system
Medical Equipment
Medical monitoring
Diagnostic equipment
A rugged full lamination display combines LCD, touch panel and cover glass using optical bonding technology to improve durability and visibility.
Full lamination reduces reflection, improves sunlight readability and increases resistance to shock and vibration.
Yes. With high brightness LCD and anti-glare glass, it can work in outdoor environments.
Yes. We provide OEM and ODM customized rugged display solutions
We support 3.5 inch to 15.6 inch rugged display modules.
Full lamination removes the air gap, providing better optical performance and reliability compared with air bonding.
