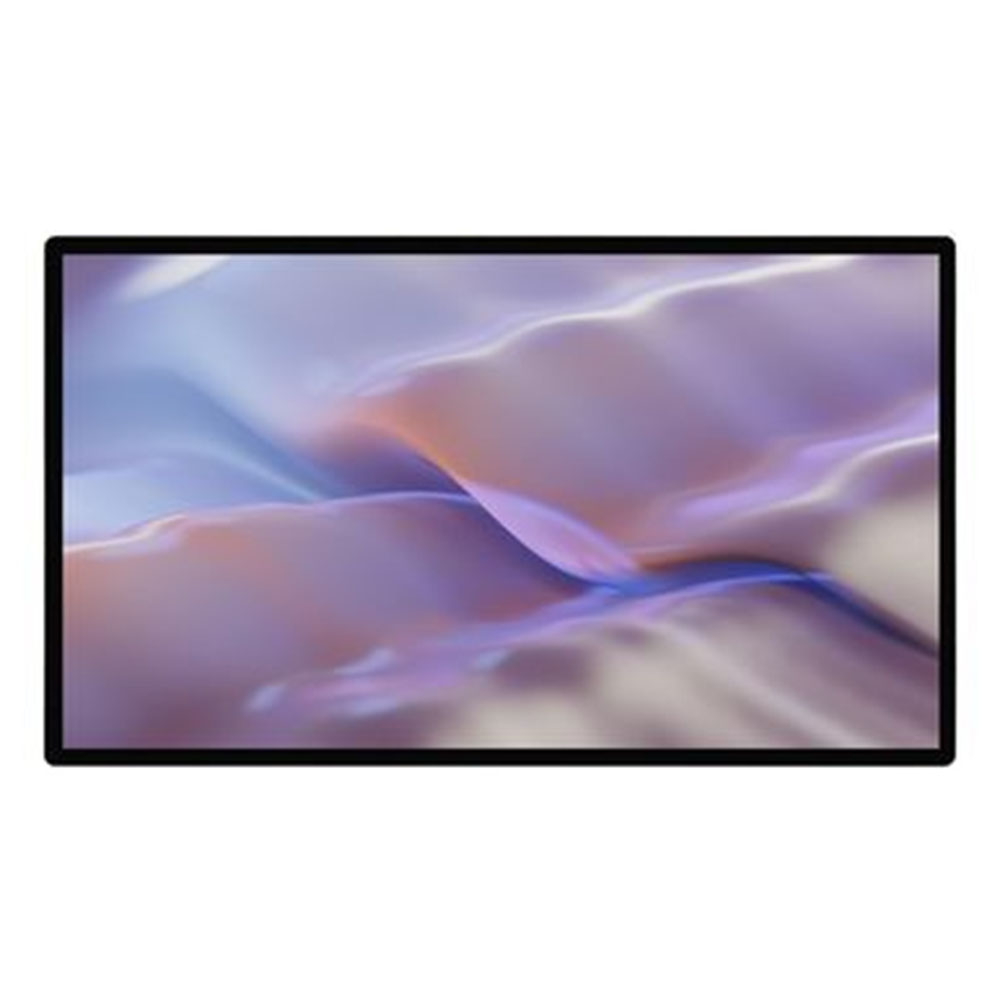

SP153 IP65 Waterproof Industrial Panel PC15inch Touchscreen for Harsh Environments
| Attribute Name | Attribute Value |
|---|---|
| Model | SP153 |
| Screen Size | 15.0 inch |
| Screen Type | TFT-LCD |
| Resolution | 1024 × 768 |
| Display Colors | 16.7M colors |
| Touch Screen | 10-point Multi-touch PCAP |
| Touch Hardness | Mohs 7H |
| Operating System | Windows 11 / Windows 10 / Galaxy Kylin V10 / UOS V20 |
| CPU | Intel Celeron J6412 / Intel Core i3/i5/i7 (6th-8th Gen) / Feiteng D2000 |
| CPU Type | Quad-core 2.0GHz~2.6GHz / 8-core 2.3GHz |
| Memory | 16GB DDR |
| Storage | 256GB SSD |
| Wi-Fi | 2.4G & 5G Dual-band |
| Bluetooth | 5.0 |
| Audio | Supports 8Ω 5W dual-channel speakers |
| Power Supply | 12V DC, 4A |
| Material | Glass + Stainless Steel |
| Waterproof Rating | IP65 (Front Panel) |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -30°C ~ 60°C |
| Dimensions | 352.4 × 279.4 × 41 mm |
| Application | Logistics, Warehouse, Industrial Automation, Retail, Parking, Smart Bus Stop |
| Warranty | 24 months |
The SP153 is a rugged waterproof industrial panel PC designed for reliable performance in challenging environments. Featuring a 15-inch high-resolution touchscreen with IP65-rated waterproof front panel, this all-in-one industrial computer delivers exceptional durability and computing power for logistics management, financial administration, warehouse operations, law enforcement, retail, pharmaceutical, parking toll systems, and smart bus stop displays.
With support for Windows 11, Windows 10, Galaxy Kylin V10, and UOS V20 operating systems, and flexible processor options including Intel and domestic Feiteng platforms, the SP153 offers versatile solutions for diverse project requirements. Its stainless steel construction, 10-point touch capability, and wide operating temperature range make it an ideal HMI solution for harsh industrial environments.
✅ IP65 Waterproof Front Panel – Fully protected against dust and water jets, ensuring reliable operation in wet, dusty, and washdown environments. Ideal for outdoor kiosks, food processing, and industrial shop floors.
✅ 15" High-Resolution Touchscreen – 1024×768 TFT-LCD display with 10-point multi-touch support. Clear, responsive interface for intuitive HMI operation and data visualization.
✅ Flexible Processor Options – Choose from Intel Celeron J6412 (quad-core, 2.0GHz~2.6GHz), Intel 6th/7th/8th Gen Core i3/i5/i7, or Feiteng D2000 (8-core, 2.3GHz) domestic processor for government and enterprise projects.
✅ Ample Memory & Storage – Standard configuration of 16GB RAM + 256GB SSD ensures smooth operation for data-intensive applications and multitasking.
✅ Versatile Connectivity – Built-in dual-band 2.4G/5G Wi-Fi and Bluetooth 5.0 for wireless connectivity. Supports 12V DC power input (12V/4A) for flexible deployment.
✅ Audio Ready – Supports 8Ω 5W speakers (dual-channel) – audio output ready for multimedia applications.
✅ Rugged Stainless Steel Construction – Durable glass panel + stainless steel chassis. Rated for operating temperatures from -20°C to 55°C and storage from -30°C to 60°C.
✅ Wide Application Range – Designed for logistics, financial administration, law enforcement, retail, pharmaceutical, warehousing, parking toll systems, and smart bus stop displays.
✅ Multi-OS Support – Supports Windows 11, Windows 10, Galaxy Kylin V10, and UOS V20, offering flexibility for various software environments.
| Parameter | Specification |
|---|---|
| Model | SP153 |
| Display Size | 15.0-inch TFT-LCD |
| Resolution | 1024 × 768 |
| Display Colors | 16.7M colors |
| Touch Type | 10-point multi-touch (Projected Capacitive) |
| Touch Hardness | Mohs hardness 7H |
| Operating Systems | Windows 11 / Windows 10 / Galaxy Kylin V10 / UOS V20 |
| CPU Option 1 | Intel Celeron J6412 (4 cores, 2.00GHz base / 2.60GHz boost, 10W) |
| CPU Option 2 | Intel 6th/7th/8th Gen Core i3/i5/i7 |
| CPU Option 3 | Feiteng D2000 (8-core, 2.3GHz) – Domestic processor solution |
| Memory | 16GB (upgradeable) |
| Storage | 256GB SSD (upgradeable) |
| Wi-Fi | 2.4G & 5G dual-band |
| Bluetooth | 5.0 |
| Audio | Supports 8Ω 5W dual-channel speakers (optional) |
| Power Input | 12V DC, 4A |
| Material | Glass panel + Stainless steel chassis |
| Waterproof Rating | Front panel IP65 |
| Dimensions | 352.4 × 279.4 × 41 mm |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -30°C ~ 60°C |
The SP153 waterproof industrial panel PC is versatile and suited for a wide range of industries and applications:
Logistics Management – Warehouse inventory control, shipping/receiving stations, fleet management
Financial Administration – Banking kiosks, counter terminals, secure transaction points
Law Enforcement & Public Safety – In-vehicle terminals, mobile command centers
Retail & POS – Point-of-sale systems, self-service kiosks, digital signage
Pharmaceutical & Healthcare – Cleanroom HMI, medical device interfaces, pharmacy automation
Warehouse Management – Inventory tracking, barcode scanning stations, material handling
Parking Toll Systems – Entry/exit payment kiosks, parking guidance displays
Smart Bus Stops – Real-time schedule displays, passenger information systems
Industrial Automation – Production line HMI, machine control, SCADA interfaces
The SP153 features an IP65-rated front panel, meaning it is fully protected against dust and protected against water jets from any direction. This makes it suitable for washdown environments and outdoor use.
The SP153 supports multiple CPU platforms including Intel Celeron J6412 (quad-core, 2.0GHz~2.6GHz), Intel 6th/7th/8th Gen Core i3/i5/i7, and the domestic Feiteng D2000 (8-core, 2.3GHz) processor for government and enterprise projects.
The SP153 supports Windows 11, Windows 10, Galaxy Kylin Desktop OS V10, and UOS Desktop OS V20, providing flexibility for both commercial and domestic software environments.
The SP153 operates on 12V DC power input with 4A current. This makes it suitable for mobile and vehicle-mounted applications
The standard configuration does not include speakers, but the SP153 supports 8Ω 5W dual-channel speakers as an optional feature for multimedia applications.
The dimensions are 352.4 × 279.4 × 41 mm (W × H × D).
The SP153 includes dual-band 2.4G/5G Wi-Fi, Bluetooth 5.0, and supports 12V DC power input. (Full I/O port details are available upon request.)
Yes, the SP153 features a fanless design for silent operation and improved reliability in dusty industrial environments.
MOQ depends on the specific configuration (CPU, memory, storage, OS). Please contact us for volume pricing and customization options
