Designed for industrial automation, machine control and HMI applications, this Resistive Touch Industrial Panel PC combines a reliable resistive touch screen, industrial enclosure and integrated computing platform in a compact all-in-one design.
Available in 10.1", 10.4", 12.1", 15", 15.6", 17", 18.5", 19" and 21.5" display sizes, the series provides flexible options for different machine interfaces, control cabinets and industrial workstations.
Die-cast and sheet-metal rear-cover configurations are available on most sizes, allowing system integrators and equipment manufacturers to select a mechanical structure according to their installation requirements.
The industrial panel PC uses a resistive touch screen designed for machine-control and industrial HMI environments.
Its touch operation is suitable for applications where operators may interact with the display using a finger, glove, stylus or other input tool, depending on the final touch configuration.
A broad size range supports different equipment and installation requirements:
The series features an aluminum front frame and industrial enclosure construction.
Different rear-cover solutions are available, including:
This allows the panel PC to be integrated into machines, control cabinets and industrial equipment with different mechanical requirements.

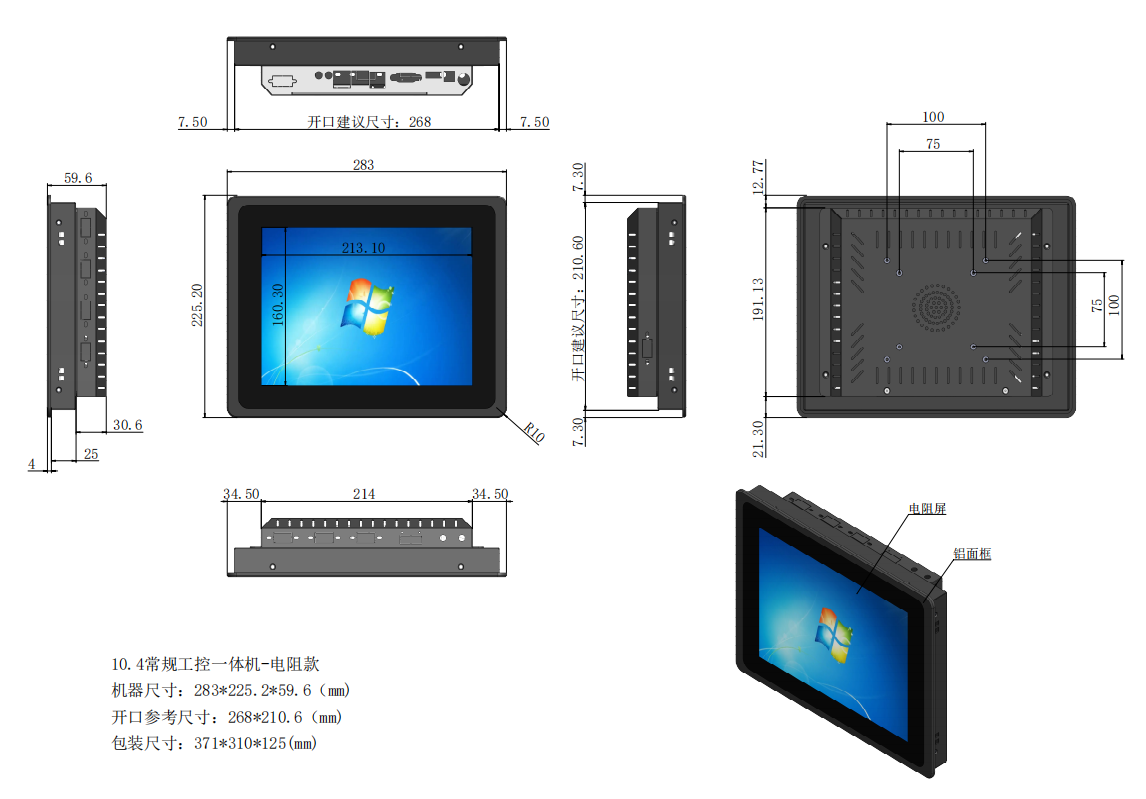

The supplied engineering drawings show different combinations of industrial interfaces, including:
The exact interface configuration depends on the selected model and mainboard configuration.
Each model provides a defined recommended cutout dimension for panel installation.
The mechanical design is suitable for:
Compact industrial panel PC designed for applications with limited installation space.
Overall dimensions: 277 × 195.64 × 54 mm
Recommended cutout: 269.42 × 187.42 mm
Available with die-cast or sheet-metal rear cover.
Overall dimensions:
Recommended cutout: 268 × 210.6 mm
A popular industrial HMI size for machine control and automation equipment.
Overall dimensions:
Recommended cutout: 302.5 × 243 mm
Designed for larger industrial HMI interfaces and operator panels.
Overall dimensions:
Recommended cutout: 357.5 × 280 mm
A widescreen option for industrial control, monitoring and visualization applications.
Overall dimensions:
Recommended cutout: 394 × 243 mm
Provides a larger operator interface for industrial automation and machine-control systems.
Overall dimensions:
Recommended cutout: 392 × 321 mm
Large-format industrial HMI solution for equipment monitoring and process-control applications.
Overall dimensions:
Recommended cutout: 464 × 284 mm
Designed for industrial workstations, automation equipment and control systems.
Overall dimensions:
Recommended cutout: 436.6 × 355 mm
Large-format HMI panel PC for applications requiring a spacious operator interface.
Overall dimensions:
Recommended cutout: 536.3 × 324.7 mm
| Display Size | Rear Cover | Overall Dimensions W×H×D | Recommended Cutout |
|---|---|---|---|
| 10.1" | Large Mainboard | 277 × 195.64 × 54 mm | 269.42 × 187.42 mm |
| 10.4" | Die-cast | 283 × 225.2 × 62 mm | 268 × 210.6 mm |
| 10.4" | Sheet Metal | 283 × 225.2 × 59.6 mm | 268 × 210.6 mm |
| 12.1" | Die-cast | 317 × 258 × 61 mm | 302.5 × 243 mm |
| 12.1" | Sheet Metal | 317 × 258 × 58.6 mm | 302.5 × 243 mm |
| 15" | Die-cast | 378 × 297 × 65 mm | 357.5 × 280 mm |
| 15" | Sheet Metal | 378 × 297 × 69 mm | 357.5 × 280 mm |
| 15.6" | Die-cast | 412 × 261 × 60 mm | 394 × 243 mm |
| 15.6" | Sheet Metal | 412 × 261 × 64 mm | 394 × 243 mm |
| 17" | Die-cast | 413 × 342 × 67 mm | 392 × 321 mm |
| 17" | Sheet Metal | 413 × 342 × 71 mm | 392 × 321 mm |
| 18.5" | Die-cast | 482 × 302 × 62 mm | 464 × 284 mm |
| 18.5" | Sheet Metal | 482 × 302 × 66 mm | 464 × 284 mm |
| 19" | Die-cast | 453 × 375.5 × 62 mm | 436.6 × 355 mm |
| 19" | Sheet Metal | 453 × 375.5 × 66 mm | 436.6 × 355 mm |
| 21.5" | Die-cast | 552 × 359 × 63 mm | 536.3 × 324.7 mm |
| 21.5" | Sheet Metal | 552 × 359 × 67 mm | 536.3 × 324.7 mm |
Packaging dimensions and housing weights are available for selected configurations according to the supplied engineering drawings.
The detailed dimensional table is provided in the downloadable PDF specification sheet.
Suitable for machine operation, equipment monitoring, production-line control and industrial automation systems.
Designed as an operator interface for:
The panel PC can be integrated into factory equipment where a touchscreen interface and embedded computing platform are required.
Suitable for industrial data visualization, equipment management, production monitoring and smart-factory applications.
The compact panel-mounted structure makes the series suitable for control cabinets and industrial operator stations.
Industrial environments often require a different touchscreen solution from consumer electronics.
A resistive touchscreen can be advantageous for applications requiring:
Combined with an integrated industrial computer and mechanical enclosure, the panel PC provides a practical platform for equipment manufacturers and system integrators.
For OEM and ODM projects, the panel PC can be evaluated according to the customer's:
For a custom project, customers are encouraged to provide the required display size, installation dimensions, interface requirements and application environment.
Depending on the selected model and mainboard, the engineering drawings show interfaces and openings including:
The final interface configuration should be confirmed according to the selected model and hardware configuration.
All dimensions in the supplied engineering drawings are expressed in millimeters.
The recommended panel cutout dimensions are reference values for installation design. Final mechanical integration should be verified against the released drawing for the selected configuration.
A resistive touch industrial panel PC is an integrated industrial computer with a resistive touchscreen and panel-mounted enclosure, designed for machine control, automation and industrial HMI applications.
The supplied series covers 10.1", 10.4", 12.1", 15", 15.6", 17", 18.5", 19" and 21.5" models.
Resistive touch technology is generally suitable for touch operation with gloves and stylus-type input. The exact touch performance depends on the final touch-panel configuration.
OEM/ODM customization can be evaluated according to mechanical dimensions, display size, interfaces, mainboard and application requirements.
The recommended cutout varies by model. For example, the 12.1-inch model uses a reference cutout of 302.5 × 243 mm, while the 21.5-inch model uses 536.3 × 324.7 mm.
The engineering drawings show COM/USB ports, Phoenix terminal blocks, mainboard interfaces, switch/power interfaces and Wi-Fi antenna openings, depending on the model.
Yes. The series is designed around industrial automation, machine control, HMI and equipment-monitoring applications.
