The 7-Inch Embedded Industrial Panel PC is a compact industrial computing and HMI solution designed for equipment integration, industrial control and space-constrained applications.
Its embedded mechanical design allows the panel PC to be integrated directly into industrial equipment or control cabinets. The front display area provides an intuitive operator interface, while the rear enclosure and mounting structure are designed for embedded installation.
With its compact footprint and dedicated mounting structure, this 7-inch industrial panel PC is suitable for applications where installation space, operator access and mechanical integration are important.
The compact enclosure is designed for embedded installation in industrial equipment, machinery and control systems.
The product incorporates dedicated mounting structures on the enclosure, allowing it to be integrated into equipment panels and industrial systems.
The front-facing display and touch interface provide a direct operator interface for monitoring, control and machine interaction.
The compact mechanical structure helps reduce installation space requirements while maintaining a dedicated industrial enclosure.
The mechanical drawing shows dedicated mounting brackets and mounting holes for equipment integration.
The product is designed around the requirements of embedded industrial applications rather than conventional consumer computing environments.
The 7-inch embedded industrial panel PC uses a compact enclosure with dedicated mounting brackets positioned around the housing.

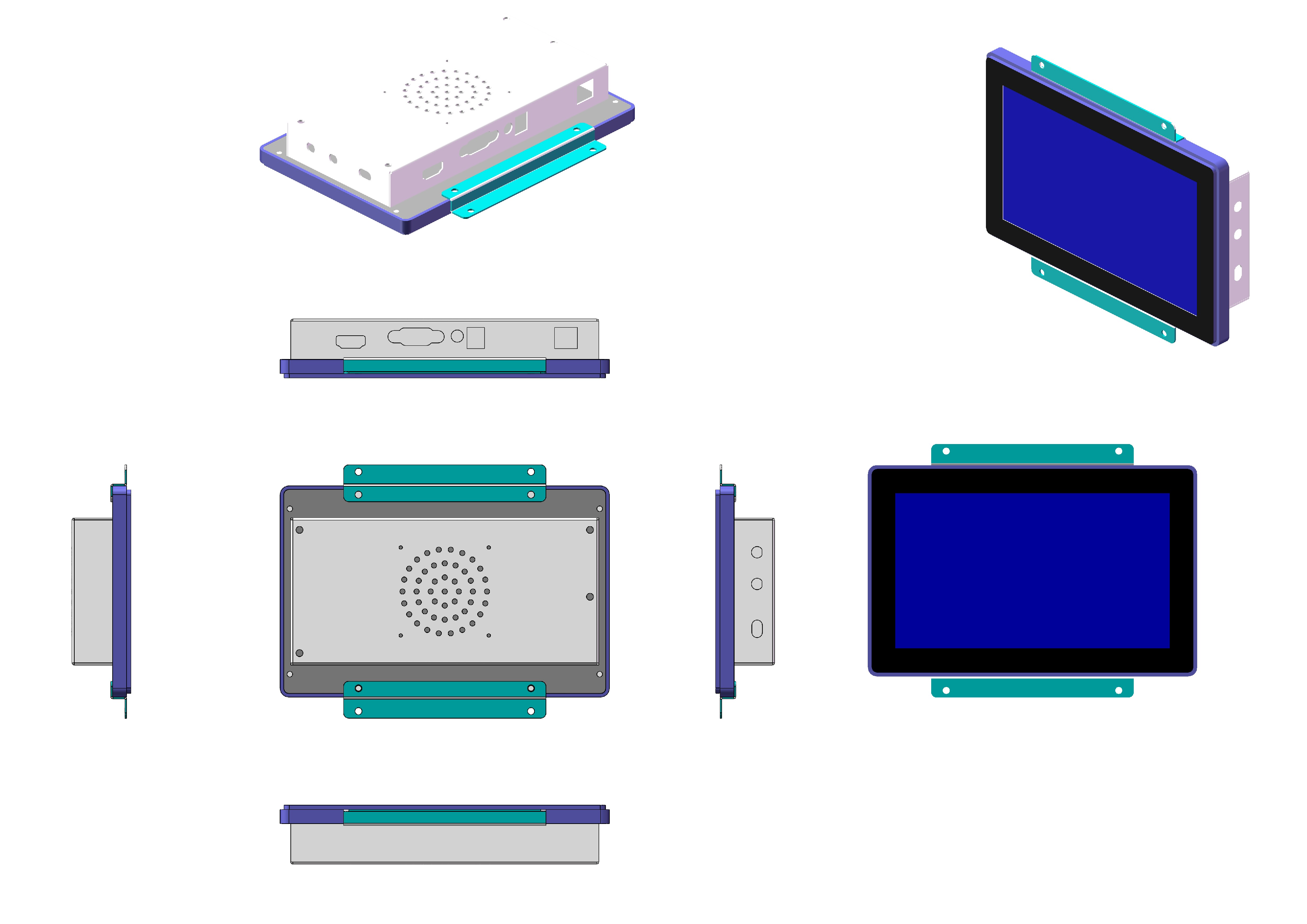

The engineering drawing provides several views, including:
The front housing has a rounded-corner design, while the rear enclosure provides space for the embedded computing hardware and interface connections.
The product is designed for embedded equipment installation.
The mounting structure includes dedicated brackets extending from the enclosure. The engineering drawing indicates a 98 mm mounting-hole spacing and Ø4 mm mounting holes.
This configuration can be used for integration into:
| Parameter | Specification |
|---|---|
| Product Type | Embedded Industrial Panel PC |
| Display Size | 7 Inch |
| Overall Width | 187 mm |
| Overall Height | 144 mm |
| Overall Depth | Approx. 33.5 mm |
| Front Housing Width | 182.6 mm |
| Front Housing Height | 115.6 mm |
| Display Area Reference | 156 × 88 mm |
| Embedded Structure | Yes |
| Mounting Structure | Integrated mounting brackets |
| Mounting Hole Reference | Ø4 mm |
| Bracket Hole Spacing | 98 mm |
| Unit | mm |
Note: Dimensions above are based on the supplied mechanical drawing. Final production dimensions should be confirmed against the approved engineering drawing.
Operator interface for automated production equipment and machinery.
Integrated HMI for machine operation, status monitoring and parameter interaction.
Compact touchscreen interface for industrial control systems.
Suitable for embedded monitoring and control interfaces.
Can be integrated into industrial equipment used in smart manufacturing environments.
Compact form factor for control-panel and cabinet integration.
For industrial equipment manufacturers, the display and computer are often required to fit within a predefined mechanical structure.
This embedded panel PC design provides a compact form factor that can be integrated into equipment while maintaining a front-facing operator interface.
It is particularly suitable when the application requires:
Compact size + embedded installation + touchscreen HMI + industrial equipment integration.
For OEM and ODM projects, the product can be evaluated according to the customer's:
Send us your mechanical drawing, display specification or existing panel PC model for engineering evaluation.
A 7-inch embedded industrial panel PC is a compact computer with an integrated display and touchscreen interface designed for installation inside industrial equipment, machinery or control systems.
The supplied mechanical drawing indicates an overall width of approximately 187 mm and a height of 144 mm, with the enclosure depth shown at approximately 33.5 mm
The supplied drawing indicates a front display-area reference of approximately 156 × 88 mm
Yes. The engineering drawing shows dedicated mounting brackets and mounting holes intended for embedded equipment installation
The supplied documents do not specify the complete customization range. For OEM/ODM projects, customers should provide their required mechanical dimensions and interface requirements for engineering evaluation.
Typical applications include industrial automation, machine control, HMI systems, equipment monitoring and embedded industrial control systems.
