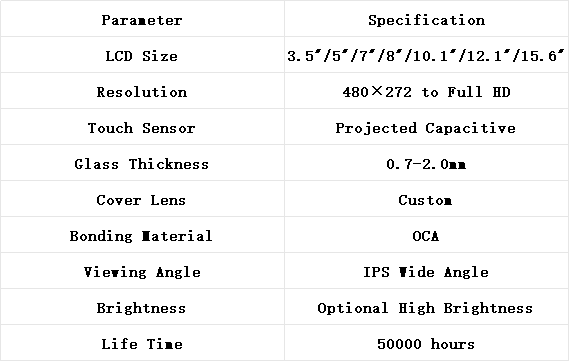

| Product Type | OCA Optical Bonding Display |
| Display Type | TFT LCD |
| Bonding Method | OCA Full Lamination |
| Touch Type | PCAP / Resistive |
| Size | 3.5-15.6 inch |
| Brightness | 300-1500 nits |
| Interface | RGB/LVDS/MIPI/HDMI |
| Operating Temperature | -20℃~70℃ |
| Customization | OEM/ODM Supported Why OCA Optical Bonding?Traditional displays have air gaps between LCD and touch panel. These gaps create:
OCA optical bonding fills the air gap with optical adhesive. Benefits:
|

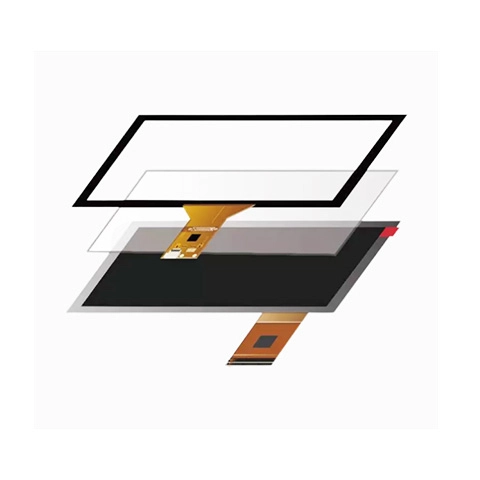

OCA Optical Bonding Display is an advanced display module solution that uses optical clear adhesive to bond TFT LCD, touch panel and cover glass together.
The OCA bonding technology eliminates air gaps between display layers, reducing reflection and improving brightness, contrast and touch sensitivity.
Our OCA optical bonding displays support custom sizes from small industrial displays to large format touch display modules.
1. High Optical Performance
Reduced reflection
Better sunlight visibility
Higher contrast ratio
2. Strong Mechanical Reliability
Anti-vibration
Anti-dust
Improved durability
3. Flexible Customization
Support:
TFT LCD
PCAP touch
Cover glass
Interface customization
4. Industrial Grade Quality
Suitable for:
24/7 operation
harsh environments
outdoor applications
Industrial Equipment
HMI control panels
automation machines
Medical Devices
diagnostic equipment
monitoring systems
Smart Terminals
POS
kiosks
Automotive
dashboard display
infotainment
OCA optical bonding display uses optical clear adhesive to bond LCD and touch layers without air gaps.
OCA uses optical adhesive film. OCR uses liquid optical resin
Yes. We provide OEM/ODM customized display solutions.
We support 3.5 inch to 15.6 inch industrial display modules.
Yes, combined with high brightness LCD and anti-glare glass, it improves outdoor readability.
