| Attribute Name | Attribute Value |
|---|---|
| Display Size | 5″, 5.7″, 7″, 8.4″, 10.1″, 10.4″, 12.1″, 15″, 15.6″, 17″, 19″, 21.5″, 24″ |
| Resolution | 800×480 / 1024×600 / 1280×800 / 1920×1080 (FHD) / 3840×2160 (4K) |
| Brightness | 300 cd/m² / 500 cd/m² / 800 cd/m² / 1000 cd/m² / 1500 cd/m² |
| Contrast Ratio | 700:1 / 1000:1 / 1200:1 / 1500:1 |
| Viewing Angle | 85/85/85/85 (IPS Full) |
| Touch Type | Projected Capacitive (PCAP) |
| Touch Features | Multi-touch (10-point) / Glove Support / Water Rejection |
| Cover Glass Coating | Anti-Glare (AG) / Anti-Reflective (AR) / Antimicrobial / Anti-Fingerprint (AF) |
| Optical Bonding | OCA Lamination / OCR Lamination |
| Interface | LVDS / HDMI / DVI / VGA / USB (Touch) / I2C (Touch) |
| Operating Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Front Protection | IP65 / IP67 |
| Backlight Lifetime | 50,000 hours / 70,000 hours |
| Medical Safety Standard | IEC 60601-1 (Compliant) |
| Medical EMC Standard | IEC 60601-1-2 (Compliant) |
| Certifications | CE (Medical), UL/cUL 60601-1, RoHS, REACH |
| Manufacturing Standard | ISO 13485:2016 |
| Cover Glass Material | Chemically Strengthened Glass / Gorilla Glass / Soda-Lime |
| Housing/Bezel Color | Medical White / Black / Custom |
| Warranty | 24 months |
| Long-term Supply | 5-7+ years |
| MOQ | 50-300 units (depends on customization) |
| Sample Lead Time | 2-4 weeks |
| Mass Production Lead Time | 4-8 weeks |
Our medical-grade OEM touch displays are purpose-engineered for medical equipment manufacturers and healthcare device OEMs. Designed to meet the rigorous demands of clinical environments, these displays deliver exceptional image clarity, precise touch response, and uncompromising reliability required for patient monitoring, diagnostic imaging, surgical navigation, and point-of-care devices.
Unlike consumer-grade displays, our medical touch screens comply with IEC 60601-1 safety standards, feature antimicrobial cover glass options, and are validated for long-term availability—ensuring your medical device remains in production without costly redesigns throughout its regulatory lifecycle.
| Feature | Standard Commercial Display | Medical OEM Touch Display |
|---|---|---|
| Safety Compliance | General purpose | IEC 60601-1 (medical electrical safety) |
| EMC/EMI Protection | Basic | IEC 60601-1-2 (medical EMC) |
| Hygiene | Standard glass | Antimicrobial/cleanable cover glass |
| Brightness Accuracy | Varies | Clinical-grade grayscale & color accuracy |
| Touch Reliability | Consumer-grade | Medical-grade PCAP (glove/latex compatible) |
| Long-term Supply | 6-12 months | 5-7+ years guaranteed |
| Branding | Generic | Full private labeling & custom molding |
✅ Medical-Grade Compliance – Full compliance with IEC 60601-1 (safety) and IEC 60601-1-2 (EMC) standards. Designed for use in patient care environments.
✅ Clinical-Grade Optical Performance – High-brightness TFT panels with precise grayscale and color reproduction. Anti-glare (AG) and anti-reflective (AR) cover glass options for surgical suite lighting conditions.
✅ Medical Touch Technology – Projected Capacitive Touch (PCAP) supports glove operation (latex/nitrile), fluid rejection, and multi-touch gestures. Front sensor design ensures seamless integration without interfering with clinical workflows.
✅ Hygienic Design – Available with antimicrobial cover glass (EPA/ISO registered) and smooth, seamless front surfaces that are easy to clean with hospital-grade disinfectants (isopropanol, bleach, etc.).
✅ Optical Bonding – Full optical bonding (OCA/OCR) eliminates the air gap, significantly improving sunlight/ambient light readability, preventing condensation, and enhancing impact resistance.
✅ Custom Mechanical Design – Customizable bezels, housing colors, and mounting options to match your device aesthetics. Support for flush bezel and seamless integration designs.
✅ Long-Term Supply Commitment – Guaranteed 5-7+ years of continuous production to support your medical device's regulatory and lifecycle requirements.
✅ Full ODM/OEM Services – From custom FPC layouts and interface selection to full housing molding and private labeling—we handle the entire development process.
Technical Specifications (Reference Range – Fully Customizable)
Parameter Specification Range
Display Sizes 5″, 5.7″, 7″, 8.4″, 10.1″, 10.4″, 12.1″, 15″, 15.6″, 17″, 19″, 21.5″, 24″
Resolution 800×480 up to 1920×1080 (FHD) and 4K UHD options
Brightness 300 – 1500 cd/m² (clinical-grade calibrated)
Contrast Ratio 700:1 to 1500:1
Color Depth 16.7M colors (true 8-bit)
Viewing Angle 85/85/85/85 (IPS technology)
Touch Type Projected Capacitive (PCAP) – Medical Grade
Touch Features Multi-touch (10-point), glove support, water rejection
Cover Glass AG (Anti-Glare) / AR (Anti-Reflective) / Antimicrobial Coating
Optical Bonding OCA or OCR full lamination (standard on medical models)
Interface LVDS / HDMI / DVI / VGA / USB (touch) / I2C (touch)
Operating Temperature 0°C ~ +50°C (clinical environment)
Storage Temperature -20°C ~ +70°C
Front Protection IP65 / IP67 (sealed for disinfection)
Backlight Lifetime 50,000 – 70,000 hours
Certifications IEC 60601-1, IEC 60601-1-2, CE (Medical), UL/cUL 60601-1, RoHS, REACH, ISO 13485 (manufacturing)
Warranty 24 months standard
Supply Commitment 5-7+ years availability
Customization Options
Customization Dimension Available Options
Size & Resolution 5″ to 24″ with FHD or 4K options
Cover Glass AG (Anti-Glare) / AR (Anti-Reflective) / Antimicrobial / AF (Anti-Fingerprint)
Optical Bonding OCA or OCR full lamination
Touch PCAP with glove/water support; custom touch sensitivity tuning
Bezel & Housing Custom colors, materials (e.g., medical white), flush bezel design
Logo & Branding Private labeling, silk-screen printing, custom boot screen
Interface LVDS/HDMI/DVI/VGA with custom pinouts and FPC design
EMC Filtering Medical-grade EMI shielding and filtering per IEC 60601-1-2
Mounting VESA / Custom brackets / Panel-mount / Flush integration

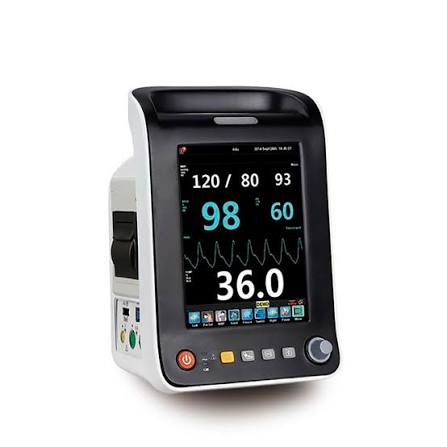

Patient Monitoring Systems – Vital signs, ECG, SpO2, NIBP
Diagnostic Imaging – Ultrasound, X-ray, MRI control consoles
Surgical Navigation & Visualization – Endoscopy, surgical microscopes, robotic surgery
Point-of-Care (POC) Devices – Blood analyzers, portable diagnostics
Anesthesia Workstations – Ventilator and gas monitoring interfaces
Dental Equipment – Digital X-ray, intraoral cameras, treatment consoles
Medical Carts & Workstations – Mobile clinical workstations
Laboratory & Pathology Equipment – Microscopes, tissue processors, analyzers
Our medical touch display modules are manufactured in facilities certified to:
| Certification | Scope |
|---|---|
| ISO 13485:2016 | Medical Device Quality Management |
| ISO 9001:2015 | Quality Management |
| IEC 60601-1 | Medical Electrical Equipment Safety |
| IEC 60601-1-2 | Medical EMC/EMI Requirements |
| UL / cUL 60601-1 | North American Medical Safety |
| CE (Medical) | European Medical Device Compliance |
| RoHS / REACH | Environmental Compliance |
Note: All products are manufactured in an ISO 13485-certified facility with full traceability and change control documentation to support your regulatory submissions (FDA 510(k), CE Mark, etc.).
| Support Type | Description |
|---|---|
| Design Review | Joint technical review of mechanical, electrical, and optical specifications |
| Sample Development | Custom samples delivered in 2-4 weeks |
| Regulatory Support | Full documentation package for FDA/CE submissions (IEC 60601 test reports, BOM, drawings) |
| Validation Support | EMC pre-testing support and compliance guidance |
| Supply Continuity | Lifecycle management with 5-7+ year availability guarantee |
Our medical touch displays fully comply with IEC 60601-1 (safety) and IEC 60601-1-2 (EMC). They are manufactured in ISO 13485:2016 certified facilities and carry CE (Medical) and UL/cUL 60601-1 certification.
Yes. Our PCAP touch technology supports operation with latex, nitrile, and surgical gloves, as well as fluid rejection for clinical environments.
Yes. We offer EPA/ISO-registered antimicrobial glass coatings that are effective against a broad spectrum of bacteria and safe for regular disinfection with hospital-grade cleaners.
Optical bonding is a lamination process that fills the air gap between the TFT panel and cover glass. This significantly improves contrast and sunlight readability, prevents condensation, and enhances impact resistance—critical for surgical and mobile clinical environments.
Absolutely. We offer custom bezel colors (including medical white), flush designs for seamless integration, and full private labeling with your brand logo.
We guarantee 5-7+ years of continuous production for all medical display models to support your device's regulatory lifecycle and avoid costly redesigns.
Yes. We provide a full documentation package including IEC 60601 test reports, BOM, mechanical drawings, electrical schematics, and supplier declarations to support your regulatory submissions.
MOQ typically ranges from 50 to 300 units depending on the level of customization. Sample orders for prototype development are available.
Sample delivery typically takes 2-4 weeks after specification confirmation. Mass production lead time is approximately 4-8 weeks.
Our displays are designed with medical-grade EMC shielding per IEC 60601-1-2. For MRI compatibility, please consult our engineering team for specific shielding and non-magnetic material options.
