| Attribute Name | Attribute Value |
|---|---|
| Model | SP211 |
| Screen Size | 21.5 inch |
| Screen Type | TFT-LCD |
| Aspect Ratio | 16:9 |
| Resolution | 1920×1080 (Full HD) |
| Touch Screen | 10-point Multi-touch PCAP |
| Brightness | 250 nits |
| Operating System | Windows 11 / Galaxy Kylin V10 / UOS V20 |
| CPU | Intel Celeron J6412 / Intel Core i3/i5/i7 (6th-8th Gen) / Feiteng D2000 |
| CPU Type | Quad-core 2.0GHz~2.6GHz / 8-core 2.3GHz |
| Memory | 16GB DDR |
| Storage | 256GB SSD |
| Wi-Fi | 2.4G & 5G Dual-band |
| Bluetooth | 5.0 |
| HDMI Ports | 1 |
| USB 3.0 Ports | 2 |
| USB 2.0 Ports | 1 |
| LAN Ports | 1 |
| RS232 Ports | 2 |
| Material | Glass + Stainless Steel |
| Waterproof Rating | IP65 (Front Panel) |
| Storage Temperature | -30°C ~ 60°C |
| Operating Temperature | -20°C ~ 55°C |
| Dimensions | 524 × 315.5 × 45 mm |
| Touch Hardness | Mohs 7H |
| Application | Logistics, Warehouse, Industrial Automation, Retail, Parking, Smart Bus Stop |
| Warranty | 24 months |

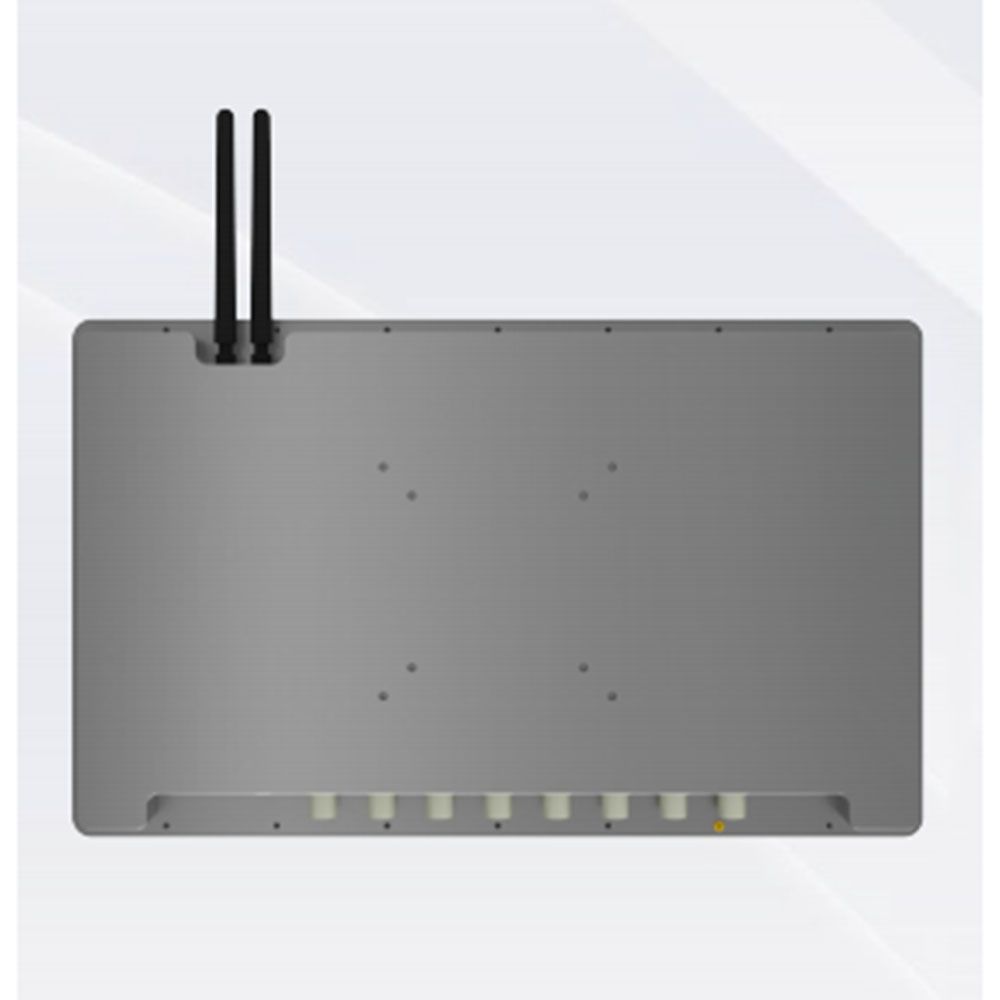

The SP211 is a high-performance waterproof industrial panel PC designed for reliable operation in demanding environments. Featuring a 21.5-inch Full HD touchscreen with IP65-rated waterproof front panel, this all-in-one industrial computer delivers exceptional durability and computing power for logistics management, financial administration, warehouse operations, public transportation, and industrial automation applications.
With support for Windows 11, Kylin, and UOS operating systems, and a choice of Intel or domestic processor platforms, the SP211 offers the flexibility to meet diverse project requirements. Its stainless steel body, 10-point touch capability, and wide operating temperature range make it an ideal HMI solution for harsh industrial environments.
✅ IP65 Waterproof Front Panel – Fully protected against dust and water jets, ensuring reliable operation in wet, dusty, and washdown environments. Ideal for food processing, outdoor kiosks, and industrial shop floors.
✅ 21.5" Full HD Touchscreen – Large 1920×1080 TFT-LCD display with 10-point multi-touch support. Clear, responsive interface for intuitive HMI operation and data visualization.
✅ Flexible Processor Options – Supports Intel 6th/7th/8th Gen Core i3/i5/i7, Intel Celeron J6412 (4-core, 2.0GHz~2.6GHz), or Feiteng D2000 8-core domestic processor for government and enterprise projects.
✅ Ample Memory & Storage – Standard configuration of 16GB RAM + 256GB SSD ensures smooth operation for data-intensive applications and multitasking.
✅ Rich I/O Connectivity – Equipped with HDMI, USB 3.0, USB 2.0, LAN, RS232 serial ports. Supports dual-band 2.4G/5G Wi-Fi and Bluetooth 5.0 for wireless connectivity.
✅ Rugged Stainless Steel Construction – Stainless steel chassis with durable glass and stainless steel body. Rated for storage temperatures from -30°C to 60°C and operating temperatures from -20°C to 55°C.
✅ Wide Application Range – Designed for logistics management, financial administration, law enforcement, retail, pharmaceutical, warehousing, parking toll systems, and smart bus stop displays.
✅ Multi-OS Support – Supports Windows 11, Galaxy Kylin Desktop OS V10, and UOS Desktop OS V20, offering flexibility for various software environments.
The SP211 waterproof industrial panel PC is versatile and suited for a wide range of industries and applications:
Logistics Management – Warehouse inventory control, shipping/receiving stations, fleet management
Financial Administration – Banking kiosks, counter terminals, secure transaction points
Law Enforcement & Public Safety – In-vehicle terminals, mobile command centers
Retail & POS – Point-of-sale systems, self-service kiosks, digital signage
Pharmaceutical & Healthcare – Cleanroom HMI, medical device interfaces, pharmacy automation
Warehouse Management – Inventory tracking, barcode scanning stations, material handling
Parking Toll Systems – Entry/exit payment kiosks, parking guidance displays
Smart Bus Stops – Real-time schedule displays, passenger information systems
Industrial Automation – Production line HMI, machine control, SCADA interfaces
The SP211 features an IP65-rated front panel, meaning it is fully protected against dust and protected against water jets from any direction. This makes it suitable for washdown environments and outdoor use
The SP211 supports multiple CPU platforms including Intel 6th/7th/8th Gen Core i3/i5/i7, Intel Celeron J6412 (quad-core, 2.0GHz~2.6GHz), and the domestic Feiteng D2000 (8-core, 2.3GHz) processor for government and enterprise projects
The SP211 supports Windows 11, Galaxy Kylin Desktop OS V10, and UOS Desktop OS V20, providing flexibility for both commercial and domestic software environments.
Yes. With its IP65-rated front panel and wide operating temperature range (-20°C to 55°C), the SP211 is suitable for outdoor applications such as smart bus stops, parking toll systems, and outdoor kiosks
The dimensions are 524 × 315.5 × 45 mm (W × H × D)
The SP211 includes HDMI, USB 3.0 (×2), USB 2.0 (×1), LAN (×1), RS232 (×2), dual-band 2.4G/5G Wi-Fi, and Bluetooth 5.0. Q7: Is the SP211 fanless
Yes, the SP211 features a fanless design for silent operation and improved reliability in dusty industrial environments.
MOQ depends on the specific configuration (CPU, memory, storage, OS). Please contact us for volume pricing and customization options.
