| Attribute Name | Attribute Value |
|---|---|
| Display Size | 4.3″, 7″, 10.1″, 15″, 21.5″, 27″ |
| Resolution | 800×480 / 1024×600 / 1280×800 / 1920×1080 |
| Brightness | 400 nits / 600 nits / 1000 nits / 1500 nits |
| Contrast Ratio | 700:1 / 1000:1 / 1200:1 |
| Viewing Angle | 85/85/85/85 (IPS Full) |
| Touch Type | Projected Capacitive (PCAP) |
| Touch Features | Multi-touch / Glove Support / Water Rejection |
| Cover Glass Coating | Anti-Glare / Anti-Reflective / Anti-Fingerprint / Tempered |
| Optical Bonding | OCA Lamination / OCR Lamination |
| Interface | LVDS / HDMI / USB (Touch) / I2C (Touch) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Front Protection | IP65 / IP67 / NEMA 4X |
| Impact Protection | IK07 / IK08 / IK10 |
| Backlight Lifetime | 50,000 hours / 70,000 hours |
| Communication Protocols | OCPP 1.6 / OCPP 2.0.1 / ISO 15118 / Modbus TCP |
| Connectivity | Ethernet / Wi-Fi / 4G LTE / Bluetooth |
| Certifications | CE / RoHS / FCC / UL / IEC 61851-1 |
| Warranty | 24 months |
| Long-term Supply | 3-5+ years |
| MOQ | 50-300 units (depends on customization) |
| Sample Lead Time | 2-4 weeks |
| Mass Production Lead Time | 4-8 weeks |

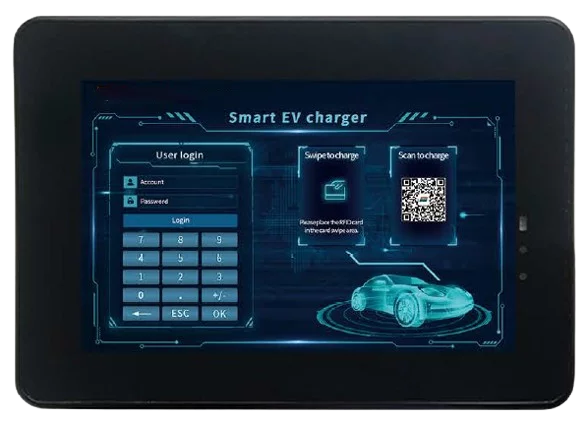

Whether you are developing portable Mode 2 chargers, commercial Level 2 stations, or high-power DC fast chargers, our HMI solutions provide the interface your users need for quick, confident, and accurate charging operations .
FeatureStandard Consumer DisplayEV Charger HMI DisplayOutdoor Readability250-400 nits1000-1500+ nits (sunlight readable)Weather ProtectionNoneIP65 / IP67 (rain, dust, humidity)Vandal ResistanceStandard glassTempered/ Gorilla Glass with IK ratingTemperature Range0°C ~ 50°C-20°C ~ 70°CGlove OperationLimitedFull support (winter gloves, medical gloves)Touch ReliabilityFinger onlyWater rejection, glove support, multi-touchLong-term Supply6-12 months3-5+ years guaranteedRegulatory ComplianceGeneral purposeIEC 61851, OCPP, UL, CE, RoHS
✅ Outdoor-Grade High Brightness – Displays with 1000 to 1500+ nits brightness ensure clear visibility under direct sunlight . Anti-glare (AG) and anti-reflective (AR) coatings available.
✅ Rugged Weather Protection – Front panel rated IP65 / IP67 for protection against rain, dust, and pressure washing. Wide operating temperature range from -20°C to 70°C ensures reliable performance in extreme climates .
✅ Vandal-Resistant Design – Tempered glass cover (4mm–6mm thickness) with IK-rated impact protection. Anti-vandal housing options for public charging stations .
✅ Reliable Touch Performance – Projected Capacitive (PCAP) touch technology supports glove operation, water rejection, and multi-touch gestures. Reliable performance even with moisture or screen contamination .
✅ Charging Protocol Integration – Compatible with OCPP 1.6 / 2.0.1 for backend communication . Supports ISO 15118 for Plug & Charge and smart charging features .
✅ Full ODM/OEM Customization – Custom UI themes, branding, language localization, interface selection, and mechanical design. Private labeling and housing color options available .
✅ Smart Connectivity – Wi-Fi, Ethernet, 4G LTE, and Bluetooth options for remote monitoring, OTA updates, and payment integration .
✅ Long-Term Supply Commitment – Guaranteed 3-5+ years of continuous production to support your charger's product lifecycle.
Parameter Specification Range
Display Sizes 4.3″, 7″, 10.1″, 15″, 21.5″, 27″
Resolution 800×480 up to 1920×1080 (FHD)
Brightness 400 – 1500+ nits (customizable for outdoor use)
Contrast Ratio 700:1 to 1200:1
Viewing Angle 85/85/85/85 (IPS technology)
Touch Type Projected Capacitive (PCAP) – multi-touch, glove support, water rejection
Cover Glass Anti-Glare (AG) / Anti-Reflective (AR) / Anti-Fingerprint (AF) / Tempered Glass (4-6mm)
Optical Bonding OCA or OCR full lamination (recommended for outdoor)
Interface LVDS / HDMI / USB (touch) / I2C (touch) / SPI
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Front Protection IP65 / IP67 / NEMA 4X
Impact Protection IK07 / IK08 / IK10 (vandal-resistant options)
Backlight Lifetime 50,000 – 70,000 hours
Communication Support OCPP 1.6 / 2.0.1, ISO 15118, Modbus TCP
Connectivity Ethernet, Wi-Fi, 4G LTE, Bluetooth
Certifications CE, RoHS, FCC, UL, IEC 61851-1
Warranty 24 months
Supply Commitment 3-5+ years availability
Our HMI displays are designed to address the specific needs of EV charging infrastructure :
| Feature | Benefit |
|---|---|
| Intuitive User Interface | Simple, icon-based operation for users of all technical levels |
| Real-Time Charging Data | Display voltage, current, power, charging time, and energy delivered |
| Multi-Language Support | UI localization for global markets (English, German, French, Spanish, etc.) |
| Payment Integration | Credit card, QR code, RFID, and mobile app payment options |
| Advertising Revenue | Ad playback on display screen during charging sessions |
| Error Diagnostics | Clear fault messages (cable loose, insufficient balance, internal failure) |
| Remote Management | OTA updates, remote monitoring, and fleet management support |
| Smart Charging | Integration with solar, grid, and time-of-use pricing |
| Customization Dimension | Available Options |
|---|---|
| Size & Resolution | 4.3″ to 27″ with FHD options |
| Brightness | Standard (400 nits) / High (1000 nits) / Ultra-High (1500+ nits) |
| Cover Glass | AG (Anti-Glare) / AR (Anti-Reflective) / AF (Anti-Fingerprint) / Tempered / Antimicrobial |
| Optical Bonding | OCA or OCR full lamination |
| Touch | PCAP with glove/water support; custom sensitivity tuning |
| Bezel & Housing | Custom colors, logo printing, flush design, VESA/panel mount |
| Interface | LVDS/HDMI/USB with custom pinouts and FPC design |
| UI/Software | Custom UI themes, boot screens, localized content, OCPP integration |
| Logo & Branding | Private labeling, silk-screen printing, custom packaging |
Portable EV Chargers (Mode 2) – IC-CPD chargers with LCD display for home and roadside use

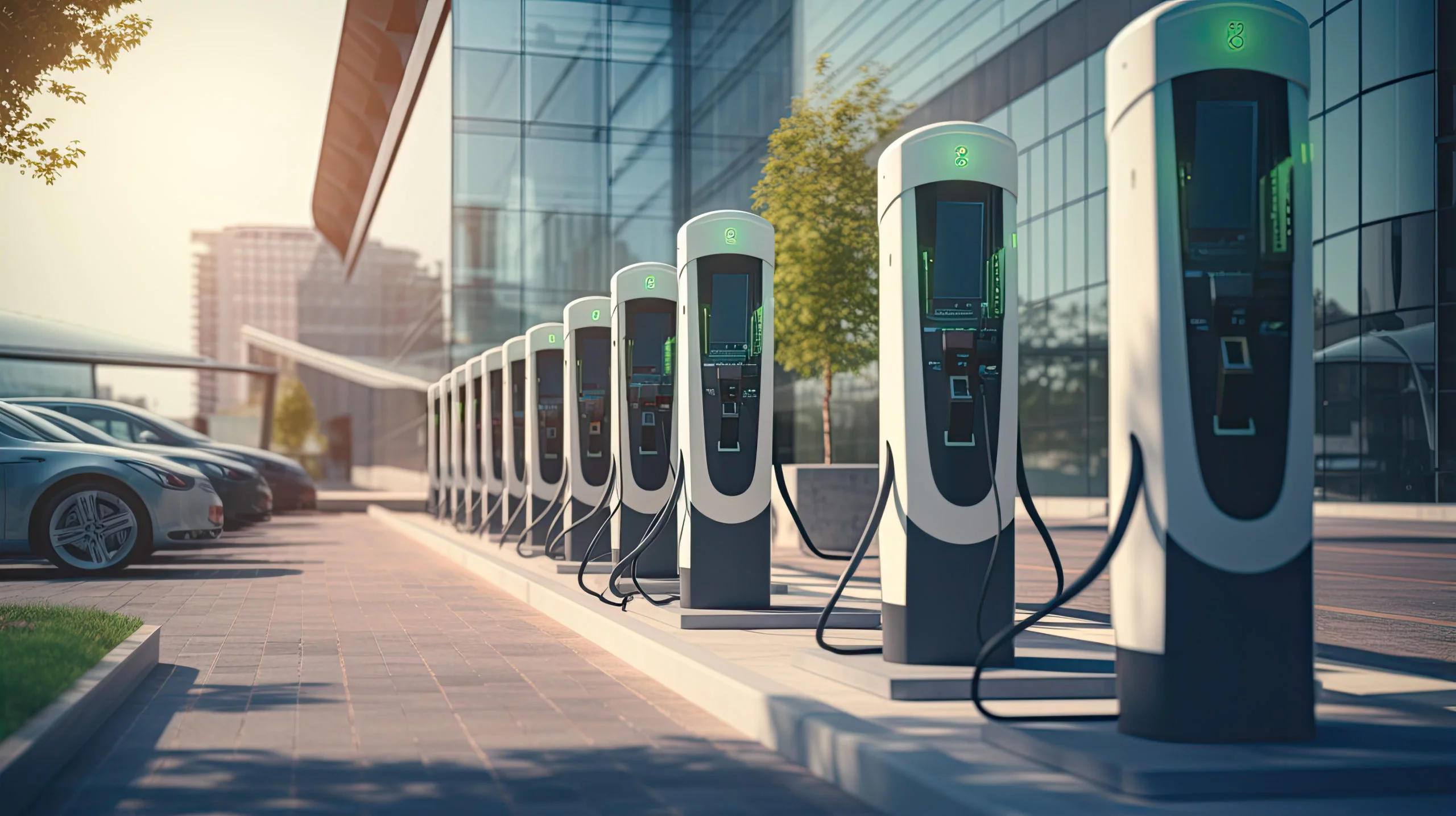

Level 2 Commercial Chargers – 7″ touchscreen stations for parking lots, offices, and multifamily housing
DC Fast Chargers (Level 3) – 15″ to 27″ large displays for highway and public charging hubs
Fleet Charging Stations – Multi-unit management with remote monitoring
Smart City Charging Infrastructure – Integrated with grid management and payment systems
Battery Swap Stations – User authentication and battery status display
For outdoor charging stations, displays should have 1000 nits or higher brightness for clear visibility under direct sunlight . We offer displays up to 1500+ nits with anti-glare coatings for optimal readability.
Yes. Our displays feature IP65/IP67 front panel protection against rain, dust, and humidity, with IK-rated tempered glass (4-6mm thickness) to resist vandalism and impact . They also operate reliably from -20°C to 70°C.
Absolutely. Our PCAP touch technology supports operation with winter gloves and medical gloves, ensuring usability in all weather conditions
Our HMI displays support OCPP 1.6 and 2.0.1 for backend communication, ISO 15118 for Plug & Charge, and Modbus TCP for integration with energy management systems
Yes. We offer full UI theme customization (colors, fonts, icons, layout, interaction logic), multi-language localization, and private branding on the display, housing, and packaging
MOQ typically ranges from 50 to 300 units depending on customization level. Sample orders for prototype development are available.
Yes. We provide test reports for compliance with IEC 61851-1, IEC 62752, UL, CE, RoHS, and FCC to support your product certifications.
We guarantee 3-5+ years of continuous production to support your EV charger's product lifecycle and avoid costly redesigns due to display discontinuation.
