Industrial Control Touch Displays
>Rugged Industrial Control Display Screens Reliable Durable for Harsh Environments

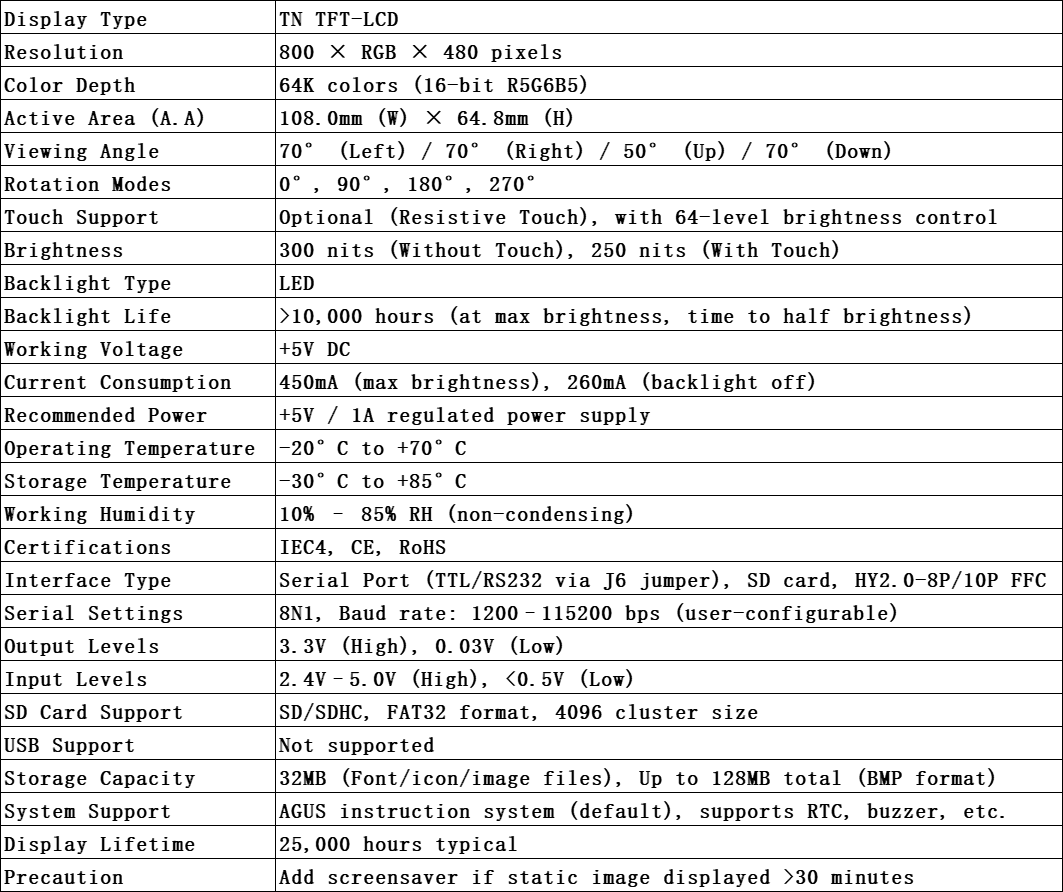

Display Type: TFT-LCD
Resolution: 800 x 480 pixels
Color Depth: 64K (65536) Colors
Brightness: 300 nits (non-touch), 250 nits (touch)
Backlight Life: >10,000 hours
Viewing Angle: 70°/70°/50°/70° (L/R/U/D)
Touch Support: Yes (64-level brightness adjustment)
Rotation: 0°/90°/180°/270°
Operating Voltage: +5V
Current Consumption: 450mA (brightest), 260mA (dimmest)
Interface: SD card, serial port, HY2.0-8P/10pin FFC
Temperature Range: -20°C to 70°C (working)
Storage: 32MB for fonts and images
Certification: IEC4, CE, RoHS

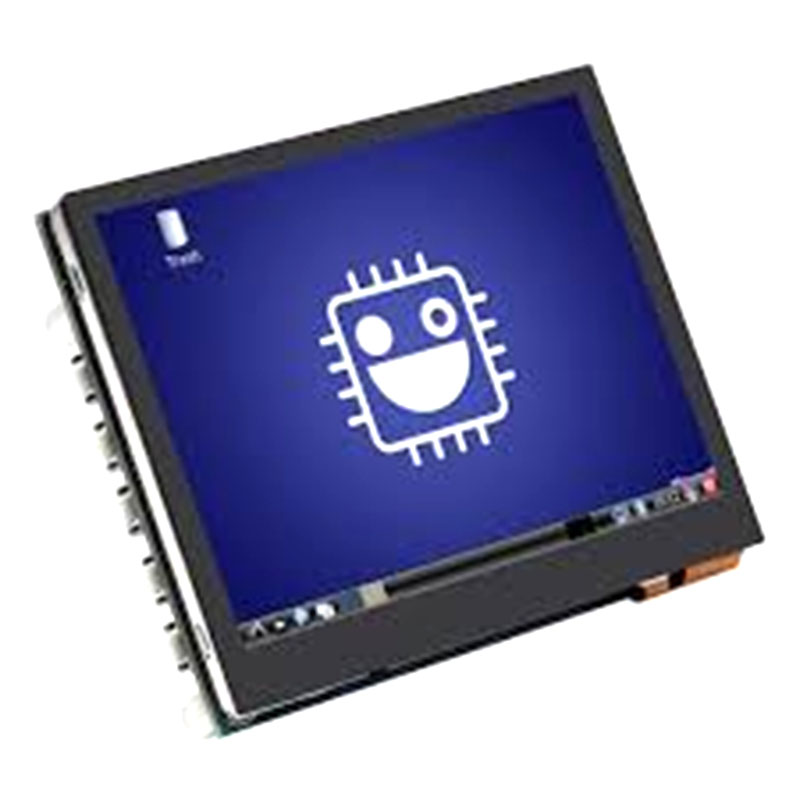

This industrial control display screen offers a high-resolution 800x480 TFT-LCD with vibrant 64K colors, designed for automation and HMI systems. Available in both touch and non-touch versions, it delivers rugged performance with wide viewing angles, long backlight life, and reliable operation in harsh environments.
Industrial Automation Control Systems
Used in PLCs and Human-Machine Interfaces (HMI) to display operational status, real-time data, and control commands.
Equipment Control Panels
Integrated into industrial machinery as the main user interface for status feedback and touch operation.
Smart Factory & Production Line Monitoring
Displays production line data, alarm messages, and workflow visuals in smart manufacturing environments.
Energy & Power Management Systems
Applied in grid monitoring, photovoltaic systems, and energy storage terminals for data display and remote control.
Medical Equipment Terminals
Embedded in medical devices like monitors, analyzers, and bedside terminals for data visualization and interaction.
Transportation & Vehicle Systems
Used in in-vehicle information systems, public transport controls, and GPS terminals for real-time interaction.
Self-Service Terminals & Information Kiosks
Ideal for ticket machines, info kiosks, and queue management systems, offering clear
Yes, it is designed for harsh environments with a wide operating temperature range (-20°C to 70°C), long backlight life, and rugged performance.
Yes, it is available in both touch and non-touch versions. The touch version also supports 64-level brightness adjustment.

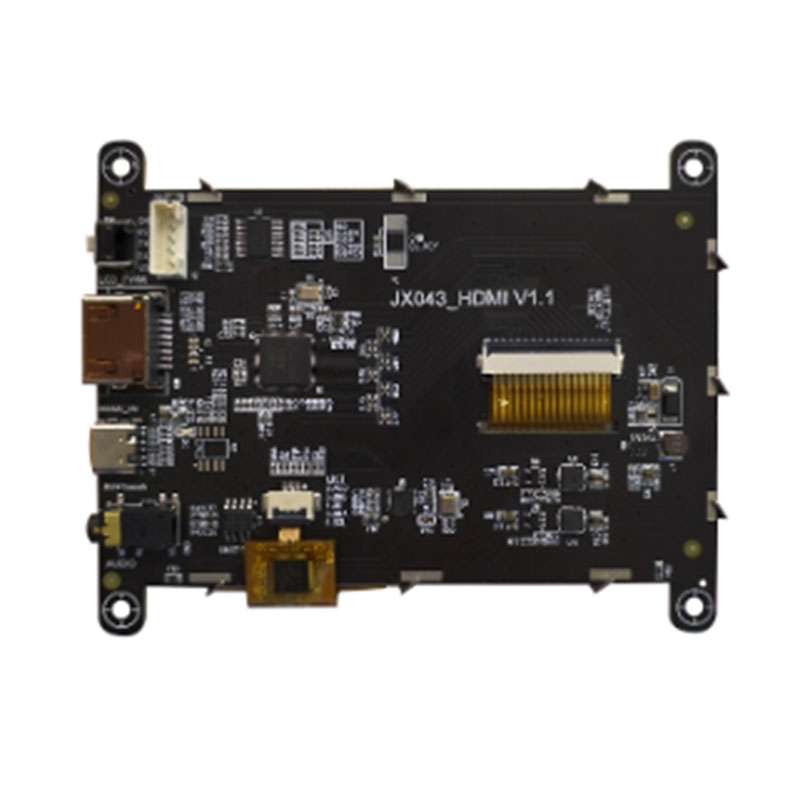

The module includes a serial port (TTL/RS232), SD card slot for firmware updates, and HY2.0-8P/10pin FFC connector
Firmware, images, font libraries, and other files can be easily updated via the SD card slot (supports FAT32 format).
Yes, it supports 0°, 90°, 180°, and 270° rotation to suit different installation requirements.
The LED backlight lasts over 10,000 hours when operated continuously at maximum brightness
+5V 1A regulated DC power supply is recommended for stable and safe operation.
Prolonged static high-contrast images may cause residual effects. It is recommended to use a screen saver if the same image is displayed for more than 30 minutes.
BMP format is supported for image display. Storage capacity depends on image resolution and file size.
Yes, it complies with IEC4, CE, and RoHS standards.
