Specifically developed for healthcare and cleanroom environments, these medical touch displays feature an advanced antibacterial coating that inhibits the growth of bacteria by up to 99.9%. The coating is integrated into the surface glass, providing long-lasting hygiene without affecting display clarity or touch sensitivity.
With a fully flat, easy-to-clean design, IP65 front protection, and high-brightness IPS panel, they ensure excellent visibility and operability even with medical gloves. Available in sizes from 10.1" to 21.5", with PCAP or resistive touch, and multiple mounting options to fit various medical devices and workstations.
Basic Information
Product Name: Medical-Grade Touch Display with Antibacterial Coating
Model: XY-MD10 / XY-MD15 / XY-MD21 (examples)
Product Type: Touch Display

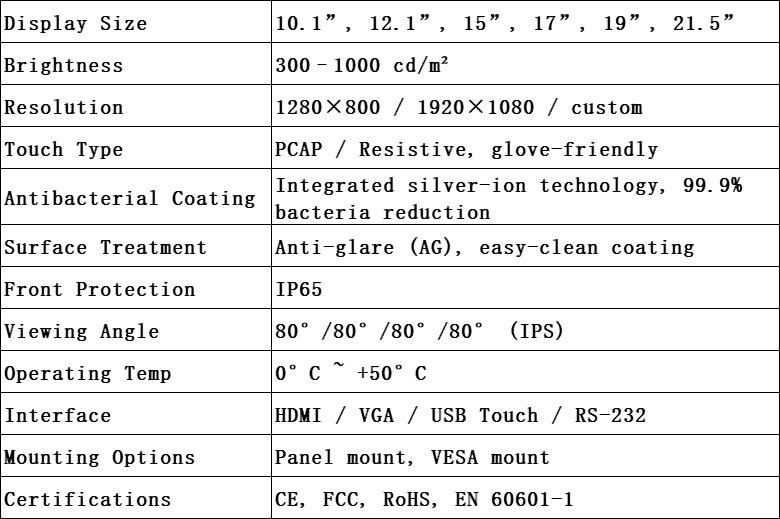

Physical Specifications
Display Sizes: 10.1", 12.1", 15", 17", 19", 21.5"
Aspect Ratio: 16:9 / 4:3 (optional)
Resolution: 1280×800 / 1920×1080 / Custom
Brightness: 300–1000 cd/m² (optional)
Viewing Angle: 80°/80°/80°/80° (IPS)
Touch Technology: Projected Capacitive (PCAP) / Resistive
Surface Treatment: Antibacterial Coating + Anti-glare
Front Protection: IP65 front panel
Material: Aluminum Alloy + Tempered Glass
Color Options: White / Black
Functional Features
Antibacterial Technology: Silver-ion embedded coating
Antibacterial Efficiency: ≥99.9% (ISO 22196)
Glove Operation: Supports latex & nitrile gloves
Mounting Options: VESA Mount / Panel Mount
Interfaces: HDMI, VGA, USB Touch, RS-232
Certifications: CE, FCC, RoHS, EN 60601-1
Operating Temperature: 0°C ~ +50°C
Our medical-grade touch displays with antibacterial coating help prevent bacterial growth on the surface, ensuring safer use in hospitals, clinics, and healthcare environments. Designed for reliability, clarity, and hygiene.
Hospital bedside terminals
Operating room displays
Nurse station information panels
Medical diagnostic equipment
Cleanroom monitoring systems
Laboratory control panels
OEM/ODM sizes and aspect ratios
Custom antibacterial coating thickness
Brightness and resolution options
Integration with medical devices
Housing color customization
Enhanced Hygiene – 99.9% bacterial reduction with long-lasting coating.
Medical Compliance – Meets EN 60601-1 and medical safety standards.
Ease of Cleaning – Flat front surface, resistant to disinfectants.
Reliable Touch – Works with medical gloves and in sterile conditions.
It uses silver-ion technology embedded in the glass to inhibit bacterial growth by up to 99.9%.
No. The coating is transparent and does not interfere with touch accuracy or display clarity.
Yes. It is resistant to alcohol-based cleaners and disinfectants commonly used in healthcare.
Absolutely. Its flat design, IP65 front protection, and glove compatibility make it ideal for sterile environments.
CE, FCC, RoHS, and EN 60601-1 for medical safety compliance.
