Product type : TFT-LCD
Dimensions : 15.6 inches
Dimensions LENS O.D : 351.86 (H) *206.33 (V)
Viewing angle LENS V.A : 344.16 (H) * 193.59 (V)
Thickness : 3.2
Brightness : 250
Viewing angle : Full viewing angle
Operating temperature : -0℃~+50℃
Storage temperature : -20℃~+60℃
Resolution : 1920 * 1080
Interface type : LVDS
Contrast : 3000:1

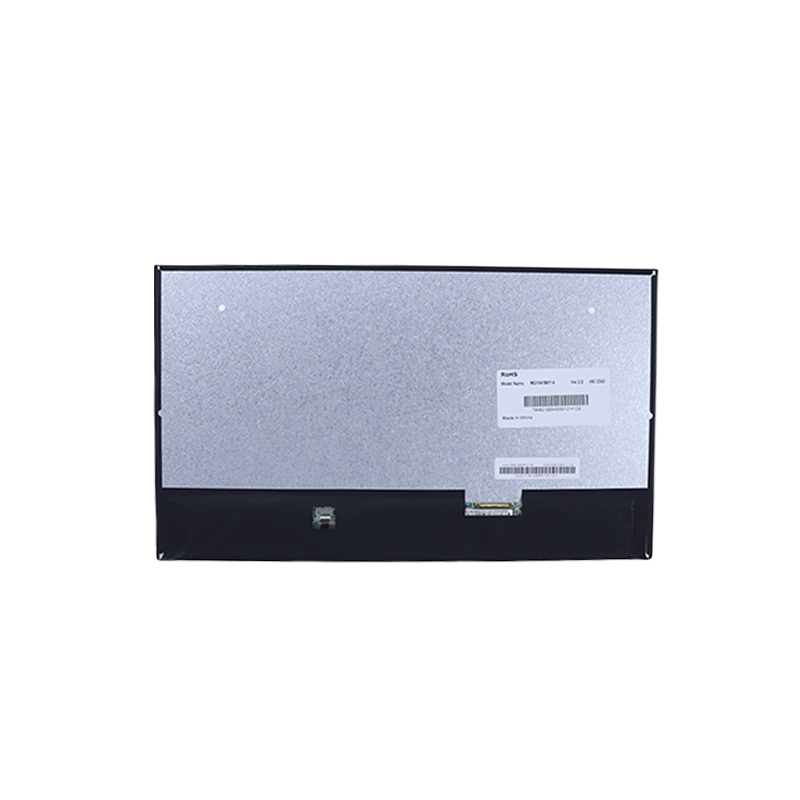

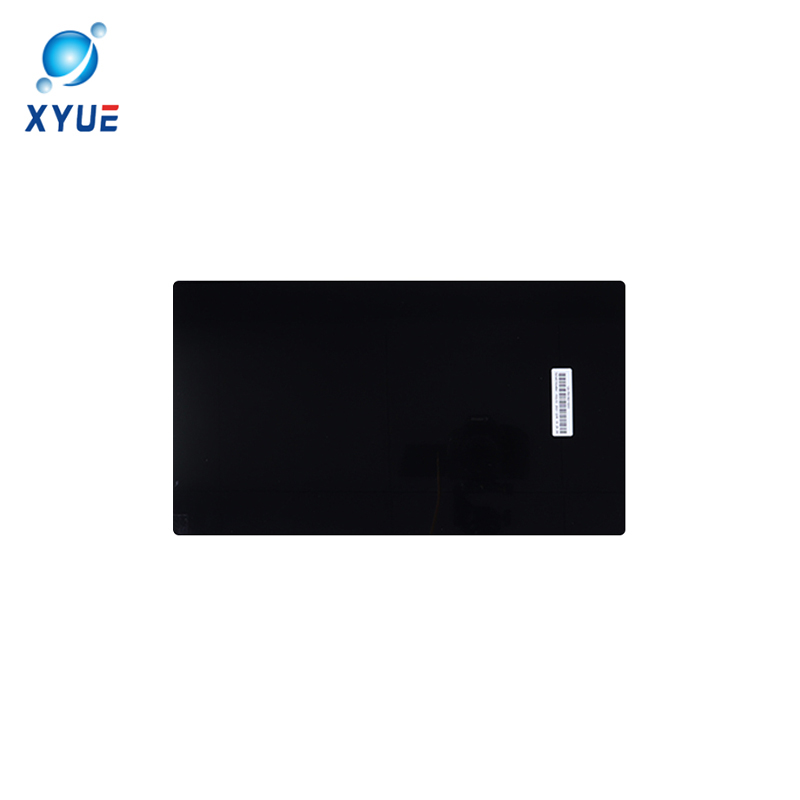

MG1561B01-6 is a color active matrix liquid crystal display with a light emitting diode (LED) backlight assembly with
LED driver. The matrix employs a-Si thin film transistor as the active element. This module is a diagonal 15.6” color active
matrix LCD module with 2ch-LVDS interface, which open cell is a transmissive type display operating in the normally black
mode. It supports 1920 * 1080 FHD resolution and can display up to 16.7M colors (8bit). Each pixel is divided into Red, Green
and Blue sub-pixels which are arranged in vertical stripe.
This module dedicates for Monitor products and provides excellent performance which includes high contrast ratio, high
color saturation and high color depth. CSOT open cell comply with RoHS for identification.
| Product Type | TFT-LCD | TFT-LCD | TFT-LCD | TFT-LCD | TFT-LCD |
|---|---|---|---|---|---|
| Size | 2.4 inch | 8 inch | 15 inch | 15.6 inch | 8 inch |
| Outer Dimensions (LENS O.D) | 60.26×42.72 | 114.6(H)×184.104(V) | 312.7×241 | 351.86(H)×206.33(V) | 164.8×124.3 |
| Viewing Area (LENS V.A) | 48.96×36.72 | 107.64(H)×172.224(V) | 304.128×228.096 | 344.16(H)×193.59(V) | 162×121.5 |
| Thickness (mm) | 2.28 | 2.6 | 3.2 | 3.2 | 8.7 |
| Brightness (cd/m²) | 250 | 400 | 400 | 250 | 300 |
| Viewing Angle | Wide | Wide | Wide | Wide | Wide |
| Operating Temperature | -20°C~+70°C | -20°C~+60°C | -20°C~+60°C | 0°C~+50°C | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C | -25°C~+70°C | -20°C~+70°C | -20°C~+60°C | -30°C~+80°C |
| Resolution | 240(H)×320(V) | 800(H)×1280(V) | 1024×768 | 1920×1080 | 800×480 |
| Interface Type | LVDS | MIPI | LVDS | LVDS | LVDS |
| Contrast Ratio | - | - | - | 3000:1 | 1000:1 |
Ideal for home automation interfaces and appliance displays
Robust solutions for manufacturing environments
Precision displays for healthcare applications
High-impact commercial solutions
Yes, Hantronix high bright, high contrast TFT’s are sunlight readable.
Yes our TFT’s typical response time is 25 to 50ms.
Yes, some of our TFTs operate at 5V. Please refer to the model specification for details for power requirements.
CCFL frame rate can be modulated for a smaller percentage of time at full voltage. This may cause some noise but you can have limited control of the CCFL. However LED backlight brightness is easier to control. It can be achieved by regulating the backlight DC- current, PWM control, or implementing special LED drivers (IC).
