In the precision world of manufacturing, the Human-Machine Interface (HMI) is the cockpit of the factory floor. But what happens when that cockpit is covered in cooling fluid, metal dust, and operated by thick safety gloves?
Recently, a leading manufacturer of CNC (Computer Numerical Control) machinery approached Xingyue Technology with a critical problem. Their existing HMI panels were failing in the field. Operators reported unresponsive screens and "ghost touches" caused by oil mist. They needed a 10.1 Inch Capacitive Touch Screen that could survive the chaos of a machining center without compromising on the modern, smartphone-like experience their customers demanded.
This case study explores how we engineered a custom Industrial Capacitive Touch Screen solution to solve these specific environmental challenges. Facing similar issues? Discuss your project with our engineers.
The Challenge: Why Standard Capacitive Screens Fail in Factories
Our client had initially sourced a standard commercial-grade capacitive screen. While it looked good in the showroom, it failed on the factory floor.
The Problem of Ghost Touches and False Triggers
In a CNC environment, cooling oil and water often splash onto the display. Standard capacitive sensors interpret these conductive liquids as a finger touch, causing the machine to register commands that weren't given—a phenomenon known as "ghost touches." This is a major safety risk.
Inability to Operate with Heavy Safety Gloves
Standard screens rely on the electrical conductivity of bare skin. When an operator wears thick rubber or leather safety gloves, the signal is blocked, rendering the screen unresponsive and forcing the operator to remove gloves constantly, which kills efficiency.
The Need for High Impact Resistance (IK Rating)
Flying debris and accidental tool impacts are common. The standard 1.1mm cover glass was prone to shattering, leading to costly downtime.
The Solution Phase 1: Engineering the Custom Touch Screen Structure
To build a true CNC Machine HMI, we started with the hardware structure. We moved away from the standard G+F (Glass + Film) structure, which is common in consumer tablets but too fragile for industry.
Choosing a G+G (Glass-on-Glass) Structure for Durability
We implemented a G+G structure, where both the cover lens and the sensor substrate are made of glass. This provides superior optical clarity and, more importantly, structural rigidity across the wide temperature ranges found in factories.
Customizing Cover Glass Thickness
We replaced the thin standard glass with chemically strengthened 3mm thick cover glass. This upgrade significantly increased the impact resistance, achieving an IK08 rating, capable of withstanding direct hits from blunt objects.
The Solution Phase 2: Firmware Tuning for Glove and Oil Resistance
Hardware is the body, but firmware is the brain. This is where our expertise as a Custom Touch Screen manufacturer truly shines.
Implementing Water and Oil Rejection Algorithms
We worked with the touch controller IC (using an industrial-grade Ilitek solution) to tune the mutual capacitance settings. By adjusting the threshold for touch registration, we programmed the screen to ignore large, static signals caused by liquid pools (water/oil rejection) while still detecting the dynamic signal of a finger.
Enabling Multi-Touch Support Through Gloves

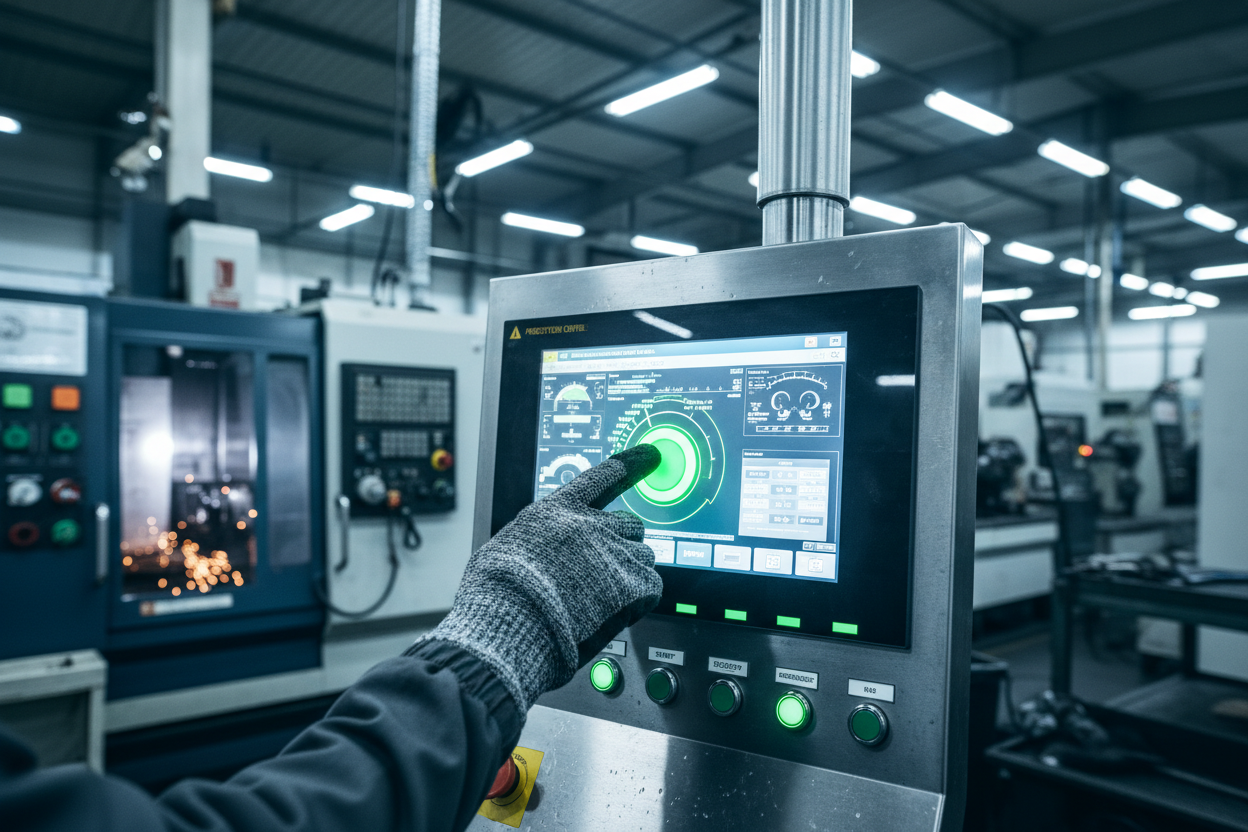

We increased the signal gain of the Industrial Capacitive Touch Screen sensor. This allows the electrical field to penetrate through up to 5mm of glove material (leather or rubber). Operators can now zoom, swipe, and tap without ever exposing their hands.
The Solution Phase 3: Enhancing Visibility with Optical Bonding
A rugged screen is useless if you can't see it. CNC factories are often brightly lit with harsh overhead LEDs.
Preventing Dust and Moisture Ingress
We utilized Optical Bonding technology to attach the touch panel to the LCD. By filling the air gap with optical resin, we eliminated the possibility of condensation (fogging) or fine metal dust getting trapped between the layers—a common killer of standard displays.
Applying Anti-Glare (AG) and Anti-Fingerprint (AF) Coatings
To combat overhead glare and oily smudges, the cover glass was treated with an etched AG coating and a vacuum-plated AF coating. This ensures the Oil Resistant Touch Screen remains readable and easy to wipe clean, even after a long shift.
The Result: A Reliable 10.1 Inch Capacitive Touch Screen HMI
After 4 weeks of prototyping and firmware iteration, the final unit was delivered for field testing.
Zero Ghost Touches: Even when splashed with coolant fluid, the screen remained stable.
Glove Operability: Operators could use full multi-touch gestures while wearing safety gloves.
Durability: The unit passed the drop ball test, proving its resistance to impact.
The client was able to launch their new CNC series on time, marketing the rugged interface as a key selling point.
Solved: Your Toughest Industrial Display Challenges
This case study is just one example of how Xingyue Technology goes beyond "off-the-shelf" products. We don't just sell screens; we engineer solutions for the real world. Whether you are dealing with extreme temperatures, water exposure, or rough handling, our Industrial Capacitive Touch Screen technology is ready for the challenge.
Facing similar challenges with your industrial equipment? Let our engineers design a solution that works as hard as your machines. Contact us for a free project consultation.
Frequently Asked Questions (FAQ)
1. Can capacitive touch screens work with thick industrial gloves?
Yes, but they require customization. Standard consumer screens will not work. We customize the touch controller's firmware to increase sensitivity, allowing the capacitive field to detect fingers through gloves up to 5mm thick (including leather, rubber, and cotton).
2. How do you prevent "ghost touches" from oil and water?
We use advanced "water rejection" algorithms in the touch IC. The firmware is tuned to recognize and ignore the capacitive signature of water droplets or oil films, ensuring the screen only registers intentional touches from the operator.
3. What impact protection rating can your custom screens achieve?
By using chemically strengthened tempered glass (up to 6mm thick) and specific mounting structures, our Custom Touch Screen solutions can achieve up to an IK10 rating, providing maximum protection against vandalism and accidental impact.
