7-Inch Motorcycle Display Screen

7-Inch Motorcycle Display Screen
7-Inch Motorcycle Display Screen
7-Inch Motorcycle Display Screen
7-Inch Motorcycle Display Screen

7-Inch Motorcycle Display Screen

Sunlight Readable: High brightness ≥1000cd/m² ensures clear visibility in strong outdoor light.
Rugged & Waterproof: IP65-rated front panel for reliable outdoor performance in rain, dust, and vibration.
Wide Temperature Range: Stable operation from -20°C to +70°C, suitable for all-season riding.
Capacitive Touch Option: Supports multi-touch for smooth user interaction, even with gloves (optional).
CAN Bus Compatible: Seamless integration with vehicle systems for data display and control.
Wide Viewing Angle: IPS technology offers consistent image quality from all angles (L/R/U/D 80°).
Custom UI & Interface: Flexible display interface (LVDS/HDMI) and UI design per customer needs.
Durable Design: Anti-glare, anti-scratch surface with shock-resistant structure for tough environments.

Designed for harsh outdoor use, this 7” TFT LCD offers excellent visibility under sunlight and stable performance from -20°C to 70°C. It supports CAN bus, customizable UI, and multi-touch capacitive input.

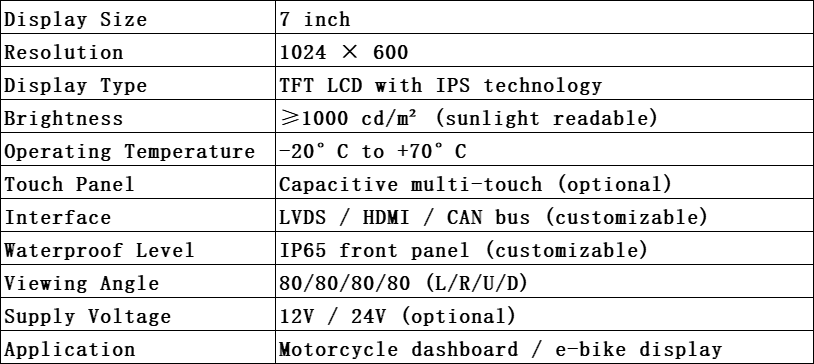

Specifications


Applications

Motorcycle Smart Dashboard

Real-time display of speed, RPM, battery level, voltage, fuel level, and warning indicators—enhancing safety and riding experience.

E-Motorbike / E-Bike Display Unit

Integrated with the vehicle's control system to show riding modes, battery status, mileage, and motor condition.

Motorcycle GPS & Infotainment System

Supports navigation, Bluetooth music, call control, and touch interaction for convenient long-distance riding.

Off-Road & Utility Vehicle Displays

Ideal for ATVs, UTVs, agricultural tricycles, and rugged terrain vehicles; shockproof, waterproof, and designed for harsh environments.

Smart Terminals for Shared Two-Wheelers

Customizable display terminal for e-scooter or bike-sharing platforms—supports QR code scanning, user login, and system status display.


FAQS

+

Is the display screen sunlight readable?

Yes, it features ≥1000 cd/m² brightness and an anti-glare surface, making it clearly visible under direct sunlight.

+

Can this screen operate in extreme temperatures?

Absolutely. It supports a wide operating temperature range from -20°C to +70°C, suitable for all-weather use.

+

Is it waterproof and dustproof?

The front panel is IP65 rated, protecting against water splashes, rain, and dust—ideal for outdoor motorcycle use.

+

Does it support touch input?

Yes, we offer optional capacitive multi-touch support. Glove-friendly touch can be customized upon request.

+

Can it be integrated with the motorcycle’s system?

Yes, it supports CAN bus communication and other interface options like LVDS or HDMI for seamless integration.

+

Do you offer customization services?

Definitely. We support custom UI, housing design, logo printing, and interface configurations based on your project needs.

+

What is the lead time for samples or bulk orders?

Sample orders typically ship within 7–10 days. For bulk orders, the lead time depends on quantity and customization level.
