Touch Display Assembly 3.5-10.1 Inches

>

4.3 inch industrial-grade industry TFT liquid crystal resistive screen High brightness

4.3 inch industrial-grade industry TFT liquid crystal resistive screen High brightness
4.3 inch industrial-grade industry TFT liquid crystal resistive screen High brightness
4.3 inch industrial-grade industry TFT liquid crystal resistive screen High brightness
4.3 inch industrial-grade industry TFT liquid crystal resistive screen High brightness
4.3 inch industrial-grade industry TFT liquid crystal resistive screen High brightness

4.3 inch industrial-grade industry TFT liquid crystal resistive screen High brightness

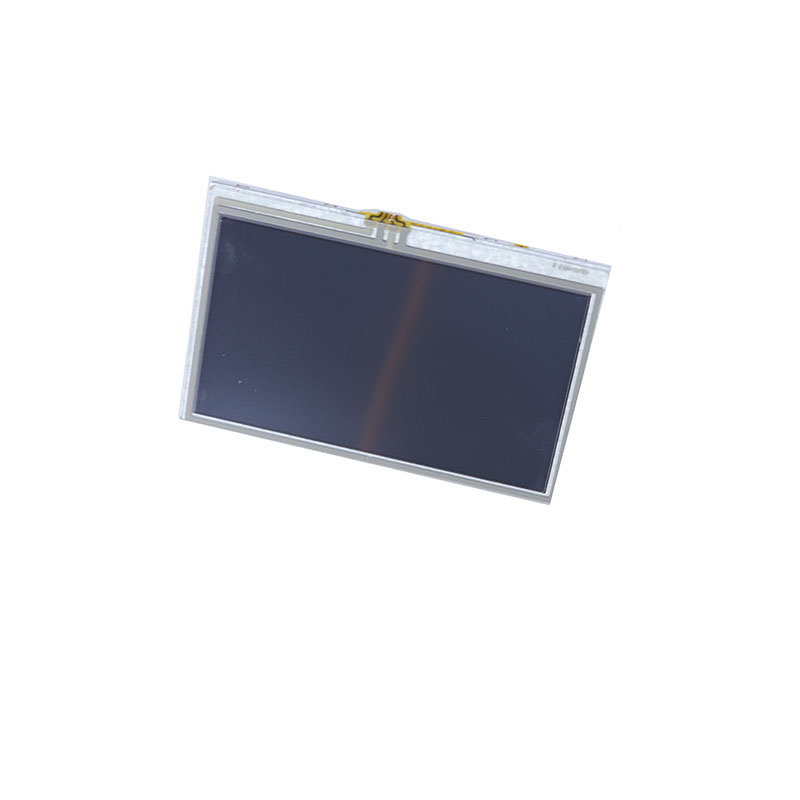

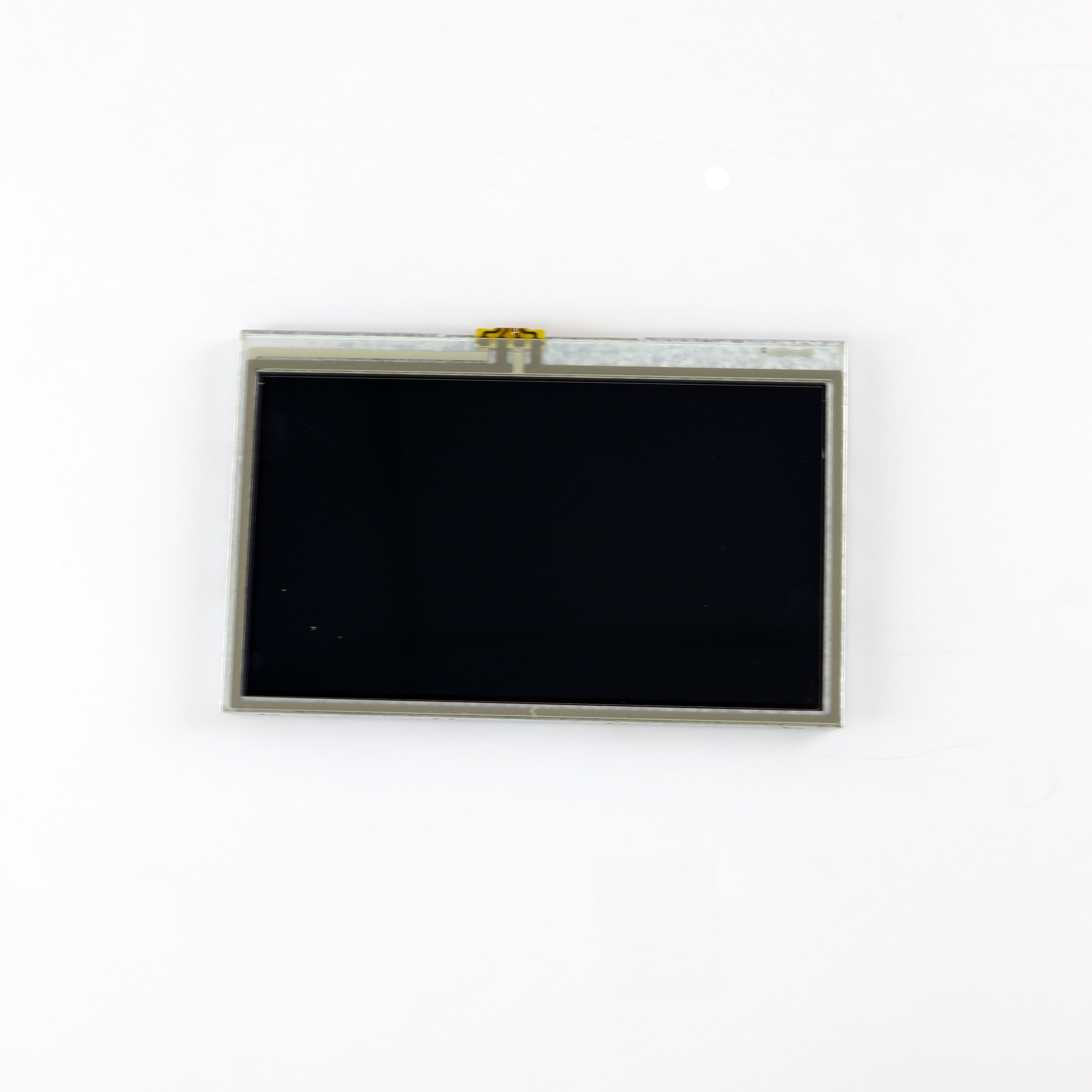

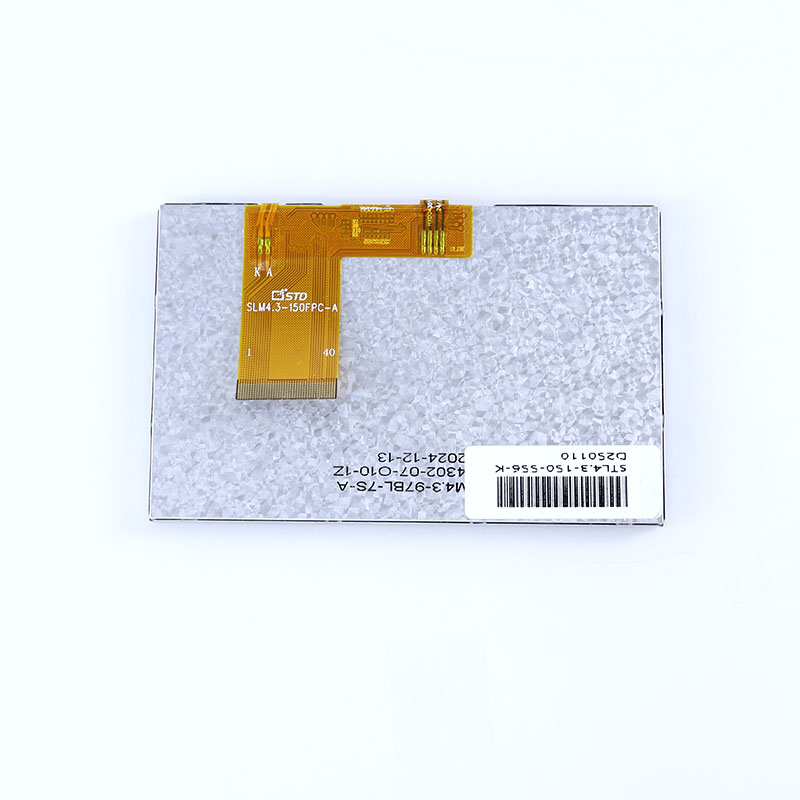

4.3" Industrial Resistive Touch TFT LCD Display
High Visibility: 500-1000 cd/m² adjustable brightness, 800:1 contrast ratio, 160° viewing angle (IPS optional)
Precision Touch: Single-touch resistive type with ≥2H hardness PET surface (glove compatible)
Multi-Interface: Supports LVDS/RGB/MIPI-DSI interfaces with I2C communication (driver IC customizable)
Low Power: 1.8-5V operating voltage (≤2W typical consumption)
Wide Temperature: -20℃~60℃ operating range with 50,000hrs LED backlight life
HD Display: 480×272 resolution (upgradable), 16.7M colors, ≤15ms response time
Applications: Industrial HMI, medical equipment, vehicle systems, smart home control panels

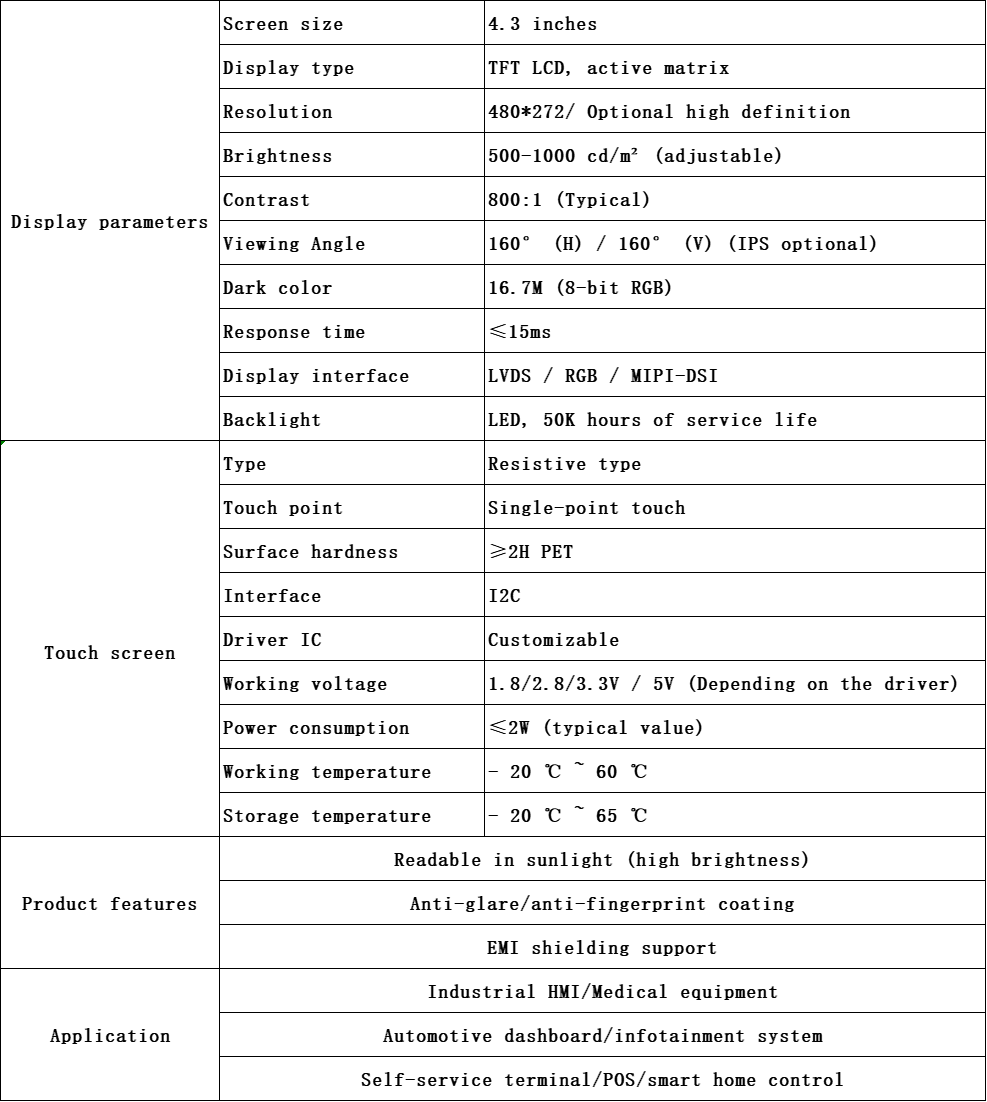

Specifications


Applications

FAQS

+

Does this touch screen support multi-touch?

❌ is not supported. This product is a single-point resistive touch screen and only supports single-point touch control. If multi-touch is required, it is recommended to choose the capacitive touch screen model.

+

What types of interfaces are there? How to connect?

supports LVDS/RGB/MIPI-DSI, standard I2C communication interface, driver IC customization service (requirements required).

+

How long is the lifespan of the backlight?

LED backlight has a lifespan of 50,000 hours (about 5.7 years of continuous use), reducing maintenance costs.

+

Is it waterproof and dustproof?

Standard version without protection, optional IP65 dust and water resistance version (please specify in advance

+

What is the minimum order quantity (MOQ)?

MOQ 100pcs, sample purchase supported (delivery within 5-7 working days).

+

Can the resolution be upgraded?

Default 480×272, high resolution 800×480 is available (driver IC replacement required

+

How to clean the screen surface?

Use a slightly damp lint-free cloth and neutral detergent, and avoid alcohol/corrosive solvents (PET surface hardness ≥2H
